Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

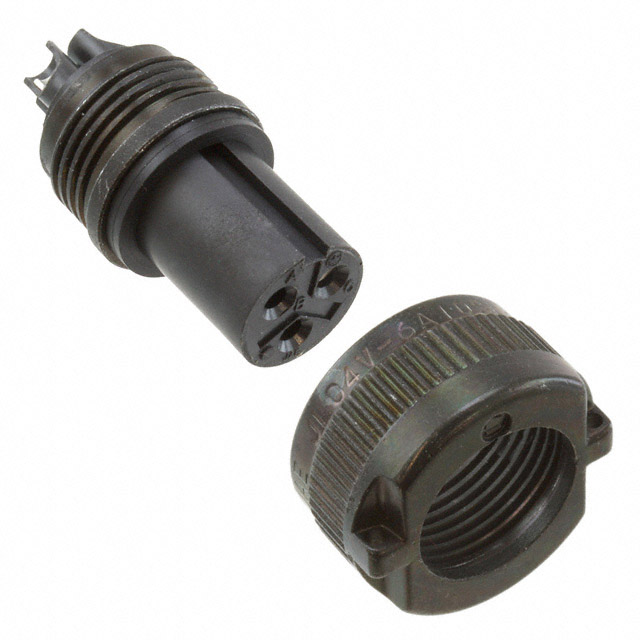

3 (2 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
Specifications
- Mfr
- JAE Electronics
- Color
- Black
- Series
- JL04V
- Features
- Coupling Nut, Ground Lug
- Packaging
- Bulk
- Shielding
- -
- Orientation
- N (Normal)
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- Industrial, Medical, Telecommunications, Test Equipment & Measurement
- Shell Finish
- Zinc
- Cable Opening
- -
- Mounting Type
- Free Hanging (In-Line)
Connector TypePlug, Female Sockets Shell MaterialAluminum Alloy Insert MaterialSynthetic Resin Contact MaterialCopper Alloy Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberJL04V-6A Number of Positions3 (2 + PE) Shell Size - Insert10SL-3 Operating Temperature-55°C ~ 125°C Contact Finish - MatingSilver Backshell Material, Plating- Material Flammability Rating- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥177.23000 |
| Bulk | 10 | ¥150.61300 |
| Bulk | 25 | ¥141.18200 |
| Bulk | 50 | ¥134.44360 |
| Bulk | 100 | ¥128.03020 |
| Bulk | 250 | ¥120.02172 |
| Bulk | 500 | ¥114.30020 |
