KLDX-SMT2-0202-ATR-1

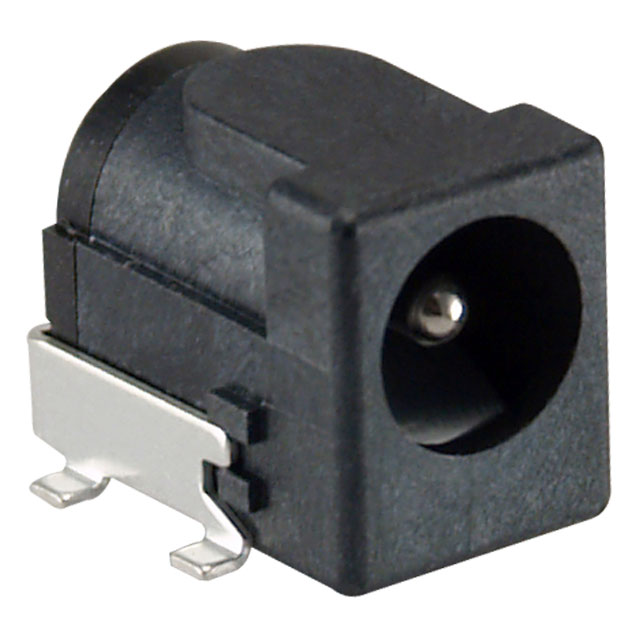

CONN PWR JACK 2X5.5MM SMT
Manufacturer: Kycon, Inc.IC code: 2092-KLDX-SMT2-0202-ATR-1TR-ND - Tape & Reel (TR) || 2092-KLDX-SMT2-0202-ATR-1CT-ND - Cut Tape (CT) || 2092-KLDX-SMT2-0202-ATR-1DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle
Specifications
- Gender
- Male
- Series
- KLDX-SMT2
- Features
- Board Guide, Solder Retention
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Kycon, Inc.
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
Actual Diameter0.079" (2.00mm ID), 0.256" (6.50mm OD) Contact MaterialBrass, Phosphor Bronze Housing MaterialLiquid Crystal Polymer (LCP) Internal Switch(s)Single Switch, Normally Closed Current Rating (Amps)3.5 A Operating Temperature-25°C ~ 65°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter2.00mm ID (0.079"), 5.50mm OD (0.217") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥12.40000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.51100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥9.85120 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥9.37980 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.93160 |
| Tape & Reel (TR) | 350 | ¥8.17500 |
| Tape & Reel (TR) | 700 | ¥7.78477 |
| Tape & Reel (TR) | 1,050 | ¥7.56523 |
| Tape & Reel (TR) | 1,750 | ¥7.29744 |
| Tape & Reel (TR) | 2,450 | ¥7.12633 |
| Tape & Reel (TR) | 3,500 | ¥6.94934 |
| Tape & Reel (TR) | 8,750 | ¥6.51467 |
