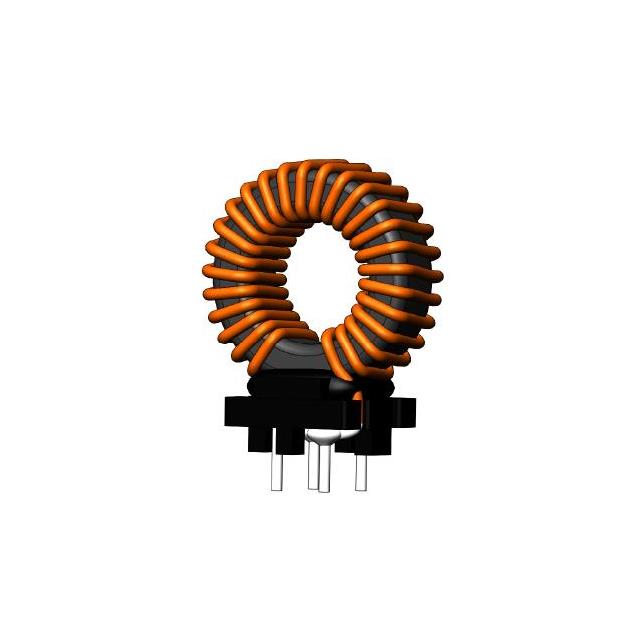

L201314A-301LHF
300.00UH, 15%, 170.00MOHM, 2.9A.
Manufacturer: ITG Electronics, Inc.IC code: 3013-L201314A-301LHF-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
300 µH Toroidal Inductor 2.9 A 170mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Specifications
- Mfr
- ITG Electronics, Inc.
- Type
- Toroidal
- Series
- L201314A
- Packaging
- Tray
- Tolerance
- ±15%
- Inductance
- 300 µH
- Part Status
- Active
- Mounting Type
- Through Hole
- Package / Case
- Radial, Vertical Cylinder, 4 Leads (Open)
- Material - Core
- Sendust
- Size / Dimension
- 0.984" L x 0.610" W (25.00mm x 15.50mm)
- DC Resistance (DCR)
- 170mOhm Max
- Current Rating (Amps)
- 2.9 A
- Height - Seated (Max)
- 1.161" (29.50mm)
- Operating Temperature
- -55°C ~ 130°C
- Current - Saturation (Isat)
- 1.8A
- Inductance Frequency - Test
- 100 kHz
