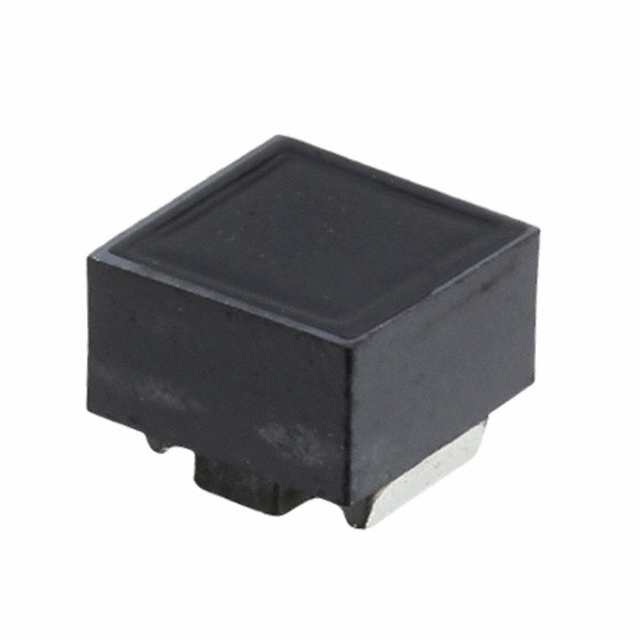

LQH66SN220M03L
FIXED IND 22UH 1.1A 121.8MOHM SM
Manufacturer: Murata ElectronicsIC code: 490-LQH66SN220M03LTR-ND - Tape & Reel (TR) || 490-LQH66SN220M03LCT-ND - Cut Tape (CT) || 490-LQH66SN220M03LDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
22 µH Shielded Drum Core, Wirewound Inductor 1.1 A 121.8mOhm Max Nonstandard
Specifications
- Mfr
- Murata Electronics
- Type
- Drum Core, Wirewound
- Series
- LQH66
- Ratings
- -
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 22 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
Base Product NumberLQH66SN DC Resistance (DCR)121.8mOhm Max Current Rating (Amps)1.1 A Height - Seated (Max)0.197" (5.00mm) Operating Temperature-40°C ~ 80°C Supplier Device Package2525 (6363 Metric) Frequency - Self Resonant15MHz Current - Saturation (Isat)- Inductance Frequency - Test1 MHz Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥13.64000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥11.24600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥9.24590 |
| Tape & Reel (TR) | 350 | ¥8.48006 |
| Tape & Reel (TR) | 700 | ¥7.99643 |
| Tape & Reel (TR) | 1,050 | ¥7.72677 |
| Tape & Reel (TR) | 1,750 | ¥7.40028 |
| Tape & Reel (TR) | 2,450 | ¥7.19302 |
| Tape & Reel (TR) | 3,500 | ¥6.97982 |
| Tape & Reel (TR) | 8,750 | ¥6.78084 |
