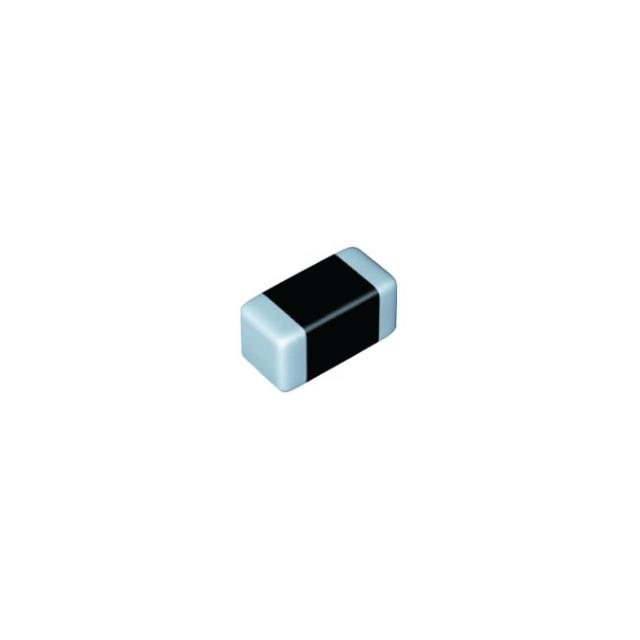

LSQCA251818T2R2M
FIXED IND 2.2UH 630MA 0.13OHM SM
Manufacturer: Taiyo YudenIC code: 587-LSQCA251818T2R2MTR-ND - Tape & Reel (TR) || 587-LSQCA251818T2R2MCT-ND - Cut Tape (CT) || 587-LSQCA251818T2R2MDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2.2 µH Unshielded Wirewound Inductor 630 mA 130mOhm 1007 (2518 Metric)
Specifications
- Mfr
- Taiyo Yuden
- Type
- Wirewound
- Series
- LSQC
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±20%
- Inductance
- 2.2 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 1007 (2518 Metric)
Size / Dimension0.098" L x 0.071" W (2.50mm x 1.80mm) Base Product NumberLSQCA2518 DC Resistance (DCR)130mOhm Current Rating (Amps)630 mA Height - Seated (Max)0.079" (2.00mm) Operating Temperature-40°C ~ 105°C Supplier Device Package1007 Frequency - Self Resonant68MHz Current - Saturation (Isat)- Inductance Frequency - Test7.96 MHz Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥0.91000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥0.76100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥0.62770 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥0.51588 |
| Tape & Reel (TR) | 2,000 | ¥0.48636 |
| Tape & Reel (TR) | 4,000 | ¥0.45857 |
| Tape & Reel (TR) | 6,000 | ¥0.44307 |
| Tape & Reel (TR) | 10,000 | ¥0.42428 |
| Tape & Reel (TR) | 14,000 | ¥0.41235 |
| Tape & Reel (TR) | 20,000 | ¥0.40008 |
| Tape & Reel (TR) | 50,000 | ¥0.37024 |
| Tape & Reel (TR) | 100,000 | ¥0.34920 |
| Tape & Reel (TR) | 200,000 | ¥0.34114 |
