LZ4-00MD09-0000

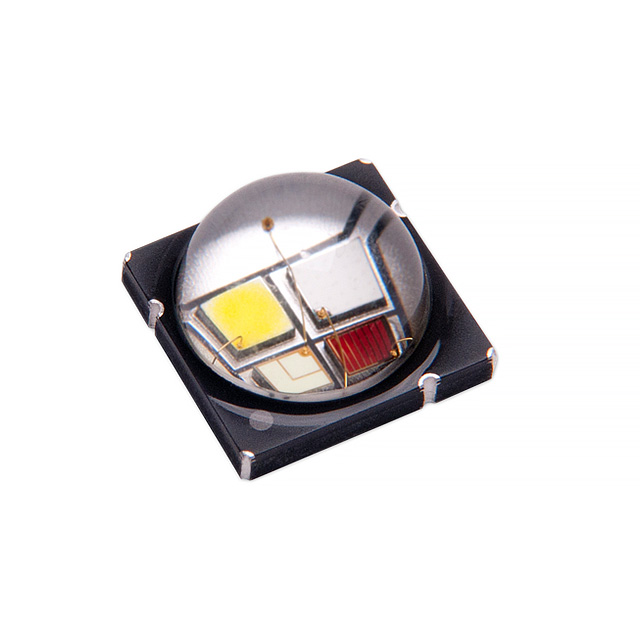

LED RGBW 624/525/457/6100K SMD
Manufacturer: ams-OSRAM USA INC.IC code: 475-LZ4-00MD09-0000TR-ND - Tape & Reel (TR) || 475-LZ4-00MD09-0000CT-ND - Cut Tape (CT)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting Color LZ4 Red, Green, Blue, White - Cool (RGBW) 624nm Red, 525nm Green, 457nm Blue, 6100K White 2828 (7070 Metric)
Specifications
- Mfr
- ams-OSRAM USA INC.
- Color
- Red, Green, Blue, White - Cool (RGBW)
- Series
- LZ4
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Wavelength
- 624nm Red, 525nm Green, 457nm Blue, 6100K White
- Part Status
- Obsolete
- Current - Max
- 1A Red, 1A Green, 1A Blue, 1A White
- Mounting Type
- Surface Mount
- Viewing Angle
- 95°
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Package / Case
- 2828 (7070 Metric)
- Size / Dimension
- 0.276" L x 0.276" W (7.00mm x 7.00mm)
- Temperature - Test
- 25°C
- Base Product Number
- LZ4-00
- Height - Seated (Max)
- 0.154" (3.90mm)
- Supplier Device Package
- SMD
- Lumens/Watt @ Current - Test
- 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White
