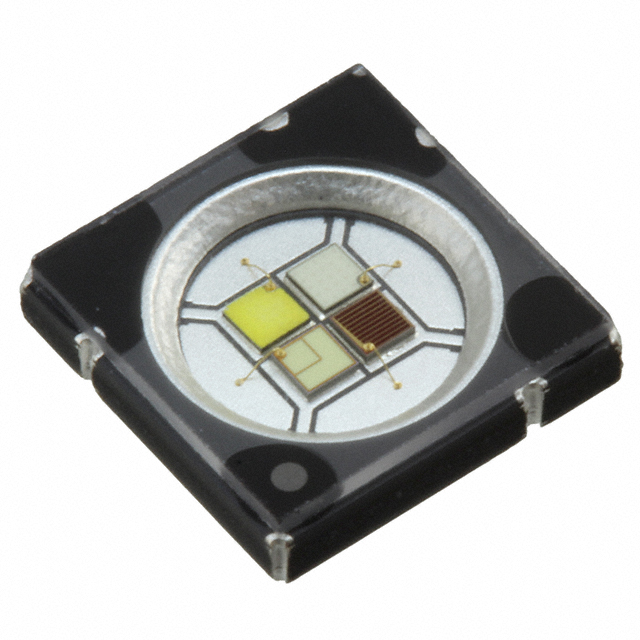

LZ4-04MDCA-0000
LED LUXIGEN LZ4 RGBW SMD
Manufacturer: ams-OSRAM USA INC.IC code: 475-LZ4-04MDCA-0000TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
LED Lighting Color LuxiGen™ LZ4 Red, Green, Blue, White - Cool (RGBW) 624nm Red, 525nm Green, 457nm Blue, 6500K White 2828 (7070 Metric)
Specifications
- Mfr
- ams-OSRAM USA INC.
- Color
- Red, Green, Blue, White - Cool (RGBW)
- Series
- LuxiGen™ LZ4
- Packaging
- Tape & Reel (TR)
- Wavelength
- 624nm Red, 525nm Green, 457nm Blue, 6500K White
- Part Status
- Obsolete
- Current - Max
- 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White
- Mounting Type
- Surface Mount
- Viewing Angle
- 110°
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Package / Case
- 2828 (7070 Metric)
- Size / Dimension
- 0.276" L x 0.276" W (7.00mm x 7.00mm)
- Temperature - Test
- 25°C
- Height - Seated (Max)
- 0.065" (1.65mm)
- Supplier Device Package
- SMD
- Lumens/Watt @ Current - Test
- 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
- Voltage - Forward (Vf) (Typ)
