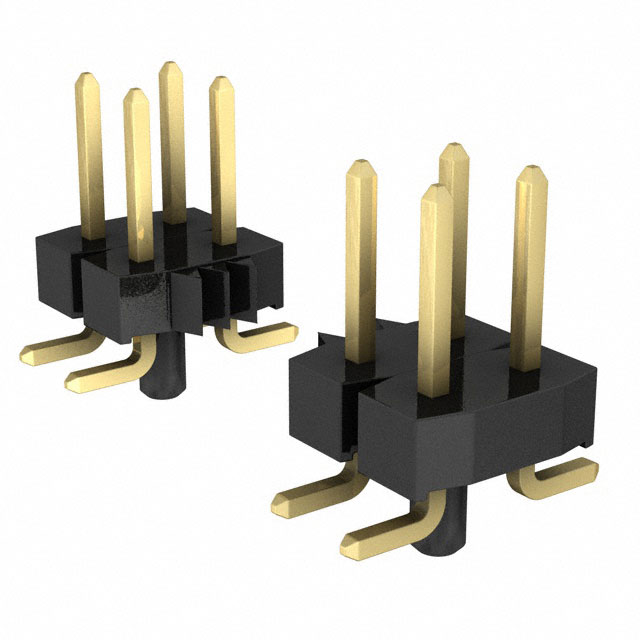

M22-5320605R
CONN HEADER SMD 12POS 2MM
Manufacturer: Harwin Inc.IC code: 952-M22-5320605RTR-ND - Tape & Reel (TR) || 952-M22-5320605RCT-ND - Cut Tape (CT) || 952-M22-5320605RDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 12 position 0.079" (2.00mm)
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board
- Series
- M22
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header, Cuttable
Pitch - Mating0.079" (2.00mm) Contact MaterialPhosphor Bronze Insulation Height0.059" (1.50mm) Base Product NumberM22-532 Insulation MaterialPolyamide (PA6T), Nylon 6T Row Spacing - Mating0.079" (2.00mm) Current Rating (Amps)1A per Contact Operating Temperature-40°C ~ 105°C Mated Stacking Heights4.6mm, 6.8mm Contact Finish - MatingGold Contact Length - Mating0.138" (3.50mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥17.53000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥14.91900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥12.67710 |
| Tape & Reel (TR) | 700 | ¥11.04989 |
| Tape & Reel (TR) | 1,400 | ¥10.52261 |
| Tape & Reel (TR) | 2,100 | ¥10.22604 |
| Tape & Reel (TR) | 3,500 | ¥9.86433 |
| Tape & Reel (TR) | 4,900 | ¥9.63314 |
| Tape & Reel (TR) | 7,000 | ¥9.39402 |
