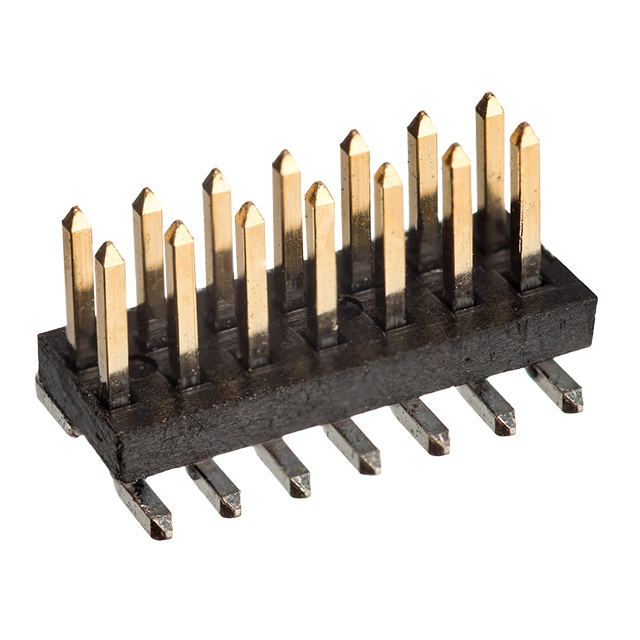

M50-3610742R
CONN HEADER SMD 14POS 1.27MM
Manufacturer: Harwin Inc.IC code: 952-3092-2-ND - Tape & Reel (TR) || 952-3092-1-ND - Cut Tape (CT) || 952-3092-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 14 position 0.050" (1.27mm)
Specifications
- Mfr
- Harwin Inc.
- Style
- Board to Board or Cable
- Series
- Archer M50
- Features
- Board Guide, Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.050" (1.27mm) Insulation Height0.039" (1.00mm) Base Product NumberM50-361 Insulation MaterialThermoplastic Row Spacing - Mating0.050" (1.27mm) Operating Temperature-55°C ~ 105°C Contact Finish - MatingGold Contact Length - Mating0.118" (3.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post80.0µin (2.03µm) Contact Finish Thickness - Mating1.00µin (0.025µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥16.37000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥13.90200 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥11.81290 |
| Tape & Reel (TR) | 700 | ¥10.29637 |
| Tape & Reel (TR) | 1,400 | ¥9.80514 |
| Tape & Reel (TR) | 2,100 | ¥9.52868 |
| Tape & Reel (TR) | 3,500 | ¥9.19167 |
| Tape & Reel (TR) | 4,900 | ¥8.97620 |
| Tape & Reel (TR) | 7,000 | ¥8.75336 |
