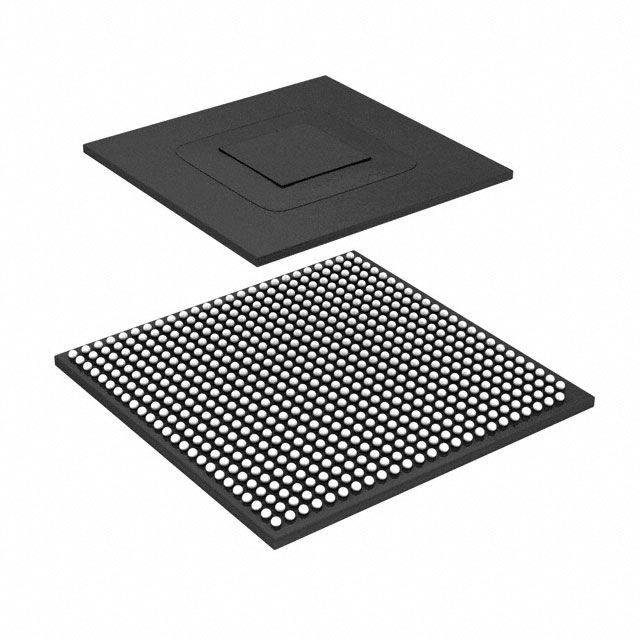

MCIMX6S5EVM10ACR
IC MPU I.MX6S 1.0GHZ 624MAPBGA
Manufacturer: NXP USA Inc.IC code: 568-15257-2-ND - Tape & Reel (TR) || 568-15257-1-ND - Cut Tape (CT) || 568-15257-6-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
ARM® Cortex®-A9 Microprocessor IC i.MX6S 1 Core, 32-Bit 1.0GHz 624-MAPBGA (21x21)
Specifications
- USB
- USB 2.0 + PHY (4)
- SATA
- -
- Speed
- 1.0GHz
- Series
- i.MX6S
- Ethernet
- 10/100/1000Mbps (1)
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- NXP USA Inc.
- Mounting Type
- Surface Mount
- Voltage - I/O
- 1.8V, 2.5V, 2.8V, 3.3V
- Core Processor
- ARM® Cortex®-A9
- Package / Case
- 624-LFBGA
- RAM Controllers
Co-Processors/DSPMultimedia; NEON™ SIMD Security FeaturesARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection Base Product NumberMCIMX6 Additional InterfacesCAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART Operating Temperature-20°C ~ 105°C (TJ) Supplier Device Package624-MAPBGA (21x21) Number of Cores/Bus Width1 Core, 32-Bit Display & Interface ControllersKeypad, LCD Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥345.19000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥281.84100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥266.02560 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥248.64470 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥240.36000 |
| Tape & Reel (TR) | 500 | ¥217.39124 |
