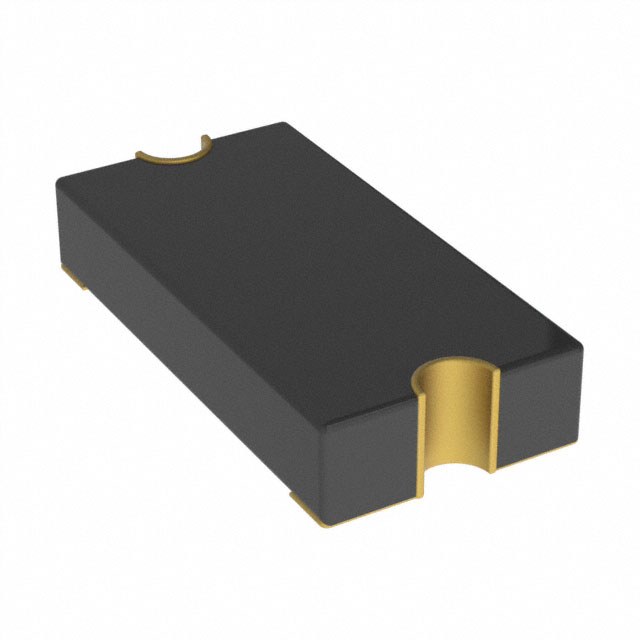

MF-NSMF110-2
PTC RESET FUSE 6V 1.1A 1206
Manufacturer: Bourns Inc.IC code: MF-NSMF110-2TR-ND - Tape & Reel (TR) || MF-NSMF110-2CT-ND - Cut Tape (CT) || MF-NSMF110-2DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Polymeric PTC Resettable Fuse 6V 1.1 A Ih Surface Mount 1206 (3216 Metric), Concave
Specifications
- Type
- Polymeric
- Grade
- Automotive
- Series
- Multifuse®, MF-NSMF
- Ratings
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Lead Spacing
- -
- Manufacturer
- Bourns Inc.
- Time to Trip
- 100 ms
- Current - Max
- 100 A
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q200
- Voltage - Max
- 6V
Package / Case1206 (3216 Metric), Concave Approval AgencycUL, cURus, TUV Thickness (Max)0.028" (0.70mm) Size / Dimension0.126" L x 0.063" W (3.20mm x 1.60mm) Base Product NumberMF-NSMF Operating Temperature-40°C ~ 85°C Current - Hold (Ih) (Max)1.1 A Resistance - Initial (Ri) (Min)60 mOhms Resistance - Post Trip (R1) (Max)200 mOhms Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.70000 |
| Cut Tape (CT) & Digi-Reel® | 5 | ¥5.57400 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.14400 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥4.26560 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.93650 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥3.53824 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥3.26334 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥3.00871 |
| Tape & Reel (TR) | 3,000 | ¥2.64270 |
| Tape & Reel (TR) | 6,000 | ¥2.43328 |
| Tape & Reel (TR) | 9,000 | ¥2.31780 |
| Tape & Reel (TR) | 15,000 | ¥2.27425 |
