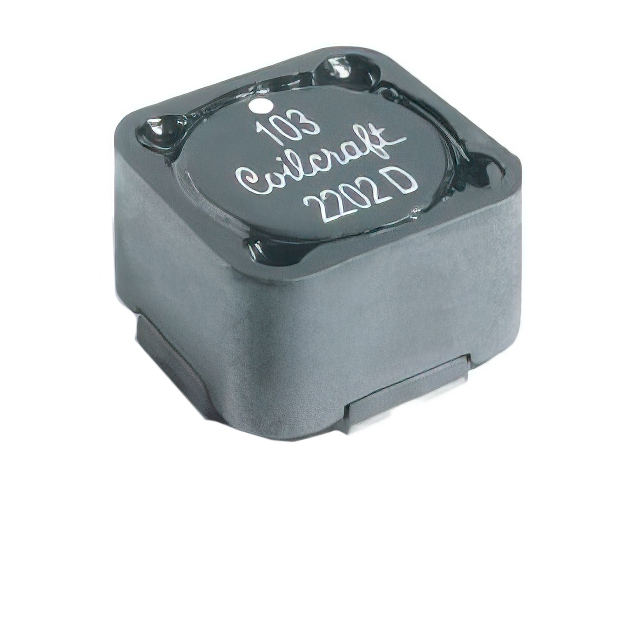

MSD1278H-652MED
CMC 6.5UH 6.74A 2LN SMD AEC-Q200
Manufacturer: CoilcraftIC code: 2457-MSD1278H-652MED-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
6.5 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 6.74A DCR 25mOhm
Specifications
- Series
- MSD1278H
- Ratings
- AEC-Q200
- Features
- -
- Packaging
- Strip
- Filter Type
- -
- Part Status
- Active
- Height (Max)
- 0.317" (8.05mm)
- Manufacturer
- Coilcraft
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Lines
- 2
- Size / Dimension
- 0.484" L x 0.484" W (12.30mm x 12.30mm)
- Current Rating (Max)
- 6.74A
- Operating Temperature
- -40°C ~ 125°C
- Inductance @ Frequency
- 6.5 µH @ 100 kHz
- DC Resistance (DCR) (Max)
- 25mOhm
