Description

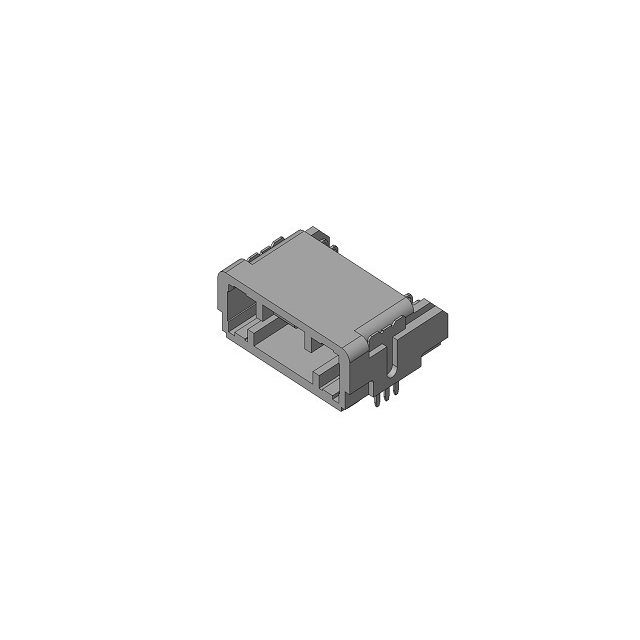

Connector Header Surface Mount, Right Angle 12 position
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX77
- Features
- Solder Retention
- Packaging
- Tray
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Contact MaterialCopper Alloy Insulation Height0.382" (9.70mm) Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating0.116" (2.95mm) Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Contact Length - Mating0.240" (6.10mm) Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥35.64000 |
| Tray | 63 | ¥26.61492 |
| Tray | 126 | ¥25.34421 |
| Tray | 504 | ¥22.98302 |
| Tray | 1,008 | ¥21.88685 |
