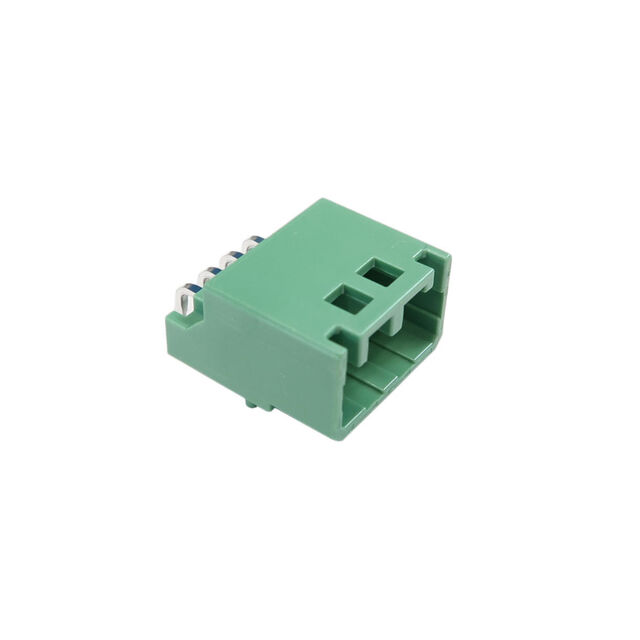

MX81A004NF1R300
CONN PIN HDR 4 POS KEY 1 2.54MM
Manufacturer: JAE ElectronicsIC code: 670-MX81A004NF1R300TR-ND - Tape & Reel (TR) || 670-MX81A004NF1R300CT-ND - Cut Tape (CT) || 670-MX81A004NF1R300DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Specifications
- Mfr
- JAE Electronics
- Style
- Board to Cable/Wire
- Series
- MX81
- Features
- Board Guide
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Header
Pitch - Mating0.100" (2.54mm) Contact MaterialCopper Alloy Insulation Height0.350" (8.89mm) Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled Current Rating (Amps)Varies by Wire Gauge Operating Temperature-40°C ~ 125°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥11.74000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥9.97400 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥9.34840 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥8.90180 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.47670 |
| Tape & Reel (TR) | 300 | ¥7.84380 |
| Tape & Reel (TR) | 600 | ¥7.46932 |
| Tape & Reel (TR) | 900 | ¥7.25867 |
| Tape & Reel (TR) | 1,500 | ¥7.00171 |
| Tape & Reel (TR) | 2,100 | ¥6.83747 |
| Tape & Reel (TR) | 3,000 | ¥6.66765 |
| Tape & Reel (TR) | 7,500 | ¥6.25057 |
