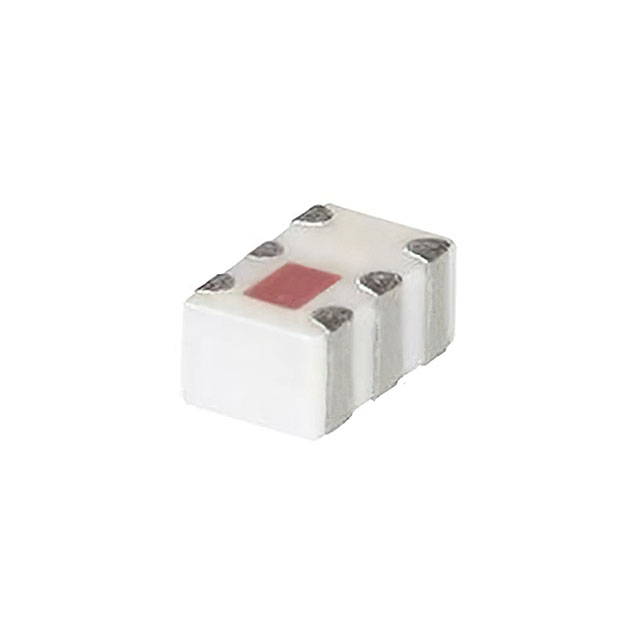

NCS1-292+
1:1 LTCC TRANSFORMER, 1650 - 285
Manufacturer: Mini-CircuitsIC code: 3157-NCS1-292+TR-ND - Tape & Reel (TR) || 3157-NCS1-292+CT-ND - Cut Tape (CT) || 3157-NCS1-292+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 1.65GHz ~ 2.85GHz 50 / 50Ohm 6-SMD, No Lead
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Package / Case
- 6-SMD, No Lead
- Frequency Range
- 1.65GHz ~ 2.85GHz
- Phase Difference
- 4°
- Return Loss (Min)
- 11.59dB
- Insertion Loss (Max)
- 1.0dB
- Impedance - Unbalanced/Balanced
- 50 / 50Ohm
