Description

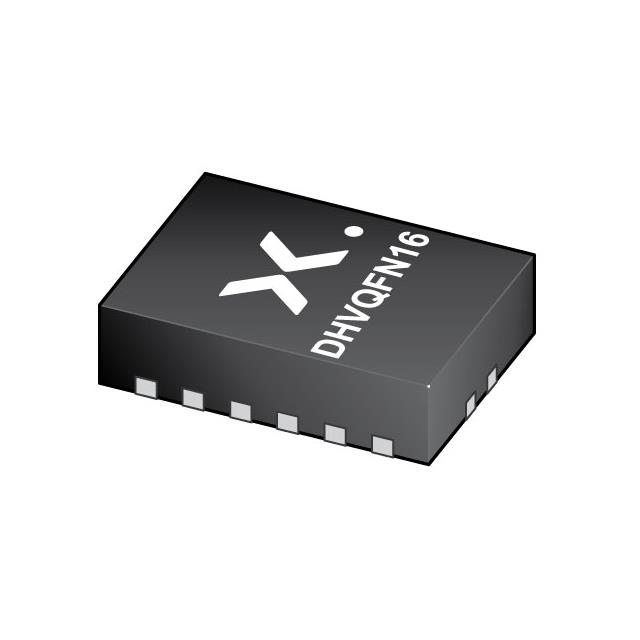

2 Circuit IC Switch 4:1 146Ohm 16-DHVQFN (2.5x3.5)
Specifications
- Grade
- -
- Series
- -
- Crosstalk
- -80dB @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Nexperia USA Inc.
- Mounting Type
- Surface Mount
- Qualification
- -
- -3db Bandwidth
- 380MHz
- Package / Case
- 16-VFQFN Exposed Pad
- Switch Circuit
- SP4T
- Charge Injection
- 8pC
- Number of Circuits
- 2
Operating Temperature-40°C ~ 125°C (TA) Supplier Device Package16-DHVQFN (2.5x3.5) On-State Resistance (Max)146Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)17ns, 69ns Voltage - Supply, Single (V+)1.5V ~ 5.5V Current - Leakage (IS(off)) (Max)1nA (Typ) Multiplexer/Demultiplexer Circuit4:1 Channel-to-Channel Matching (ΔRon)1Ohm Channel Capacitance (CS(off), CD(off))1.5pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.82000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥1.95900 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥1.73840 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.49810 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.38328 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.31400 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.25701 |
| Tape & Reel (TR) | 3,000 | ¥1.05342 |
| Tape & Reel (TR) | 6,000 | ¥1.02215 |
| Tape & Reel (TR) | 9,000 | ¥1.00649 |
| Tape & Reel (TR) | 15,000 | ¥0.98913 |
| Tape & Reel (TR) | 21,000 | ¥0.97899 |
| Tape & Reel (TR) | 30,000 | ¥0.96924 |
| Tape & Reel (TR) | 75,000 | ¥0.94823 |
