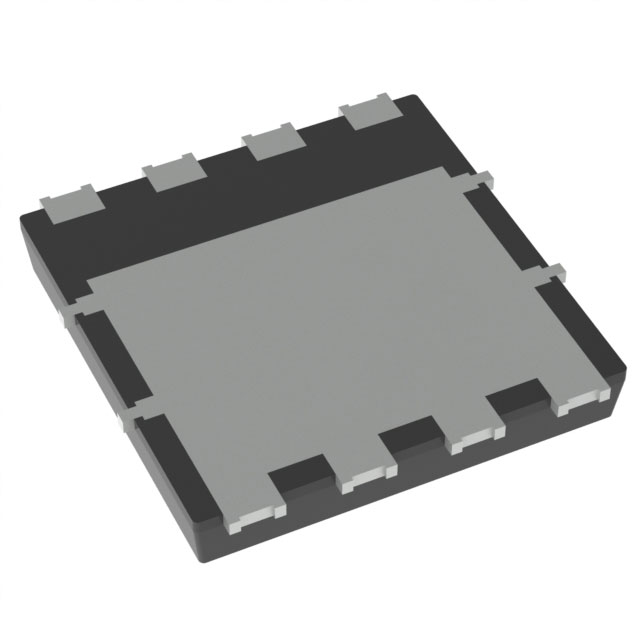

NTMTS1D5N08H
T8-80V IN PQFN88 FOR INDU
Manufacturer: onsemiIC code: 488-NTMTS1D5N08HTR-ND - Tape & Reel (TR) || 488-NTMTS1D5N08HCT-ND - Cut Tape (CT) || 488-NTMTS1D5N08HDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 80 V 36A (Ta), 255A (Tc) 4.2W (Ta), 208W (Tc) Surface Mount 8-DFNW (8.3x8.4)
Specifications
- Mfr
- onsemi
- Grade
- -
- Series
- -
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-PowerTDFN
- Vgs(th) (Max) @ Id
- 4V @ 490µA
Base Product NumberNTMTS1D Operating Temperature-55°C ~ 150°C (TJ) Rds On (Max) @ Id, Vgs1.5mOhm @ 90A, 10V Power Dissipation (Max)4.2W (Ta), 208W (Tc) Supplier Device Package8-DFNW (8.3x8.4) Gate Charge (Qg) (Max) @ Vgs125 nC @ 10 V Drain to Source Voltage (Vdss)80 V Input Capacitance (Ciss) (Max) @ Vds8220 pF @ 40 V Drive Voltage (Max Rds On, Min Rds On)6V, 10V Current - Continuous Drain (Id) @ 25°C36A (Ta), 255A (Tc) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥50.12000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥33.56000 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥24.19880 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥23.95982 |
| Tape & Reel (TR) | 3,000 | ¥19.57507 |
