Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

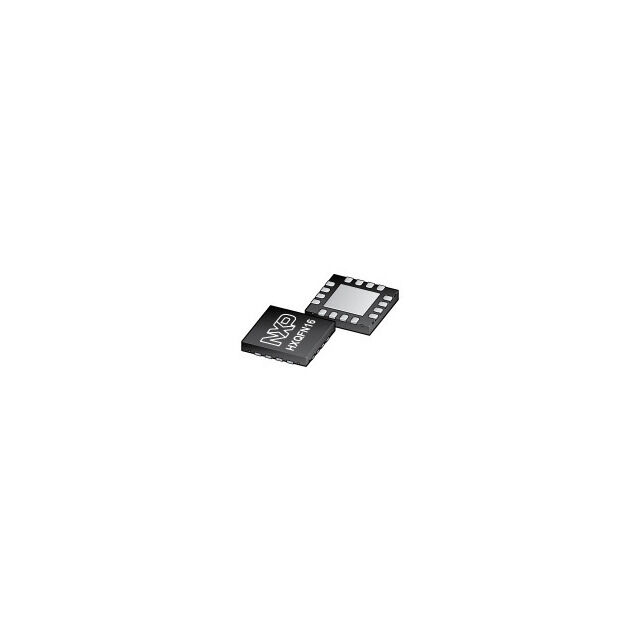

2 Circuit IC Switch 2:2 3.3Ohm 16-HXQFN (3x3)
Specifications
- Grade
- Automotive
- Series
- -
- Crosstalk
- -90dB @ 1MHz
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Manufacturer
- NXP USA Inc.
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q100
- -3db Bandwidth
- 200MHz
- Package / Case
- 16-XFQFN Exposed Pad
- Switch Circuit
- DPDT
- Charge Injection
- 4pC
- Number of Circuits
- 2
Operating Temperature-40°C ~ 125°C (TA) Supplier Device Package16-HXQFN (3x3) On-State Resistance (Max)3.3Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)40ns, 20ns Voltage - Supply, Single (V+)1.4V ~ 4.3V Current - Leakage (IS(off)) (Max)5nA Multiplexer/Demultiplexer Circuit2:2 Channel-to-Channel Matching (ΔRon)700mOhm Channel Capacitance (CS(off), CD(off))8pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 1,500 | ¥4.82124 |
| Tape & Reel (TR) | 3,000 | ¥4.69217 |
| Tape & Reel (TR) | 4,500 | ¥4.62750 |
| Tape & Reel (TR) | 7,500 | ¥4.55589 |
| Tape & Reel (TR) | 10,500 | ¥4.51403 |
| Tape & Reel (TR) | 15,000 | ¥4.47377 |
