Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

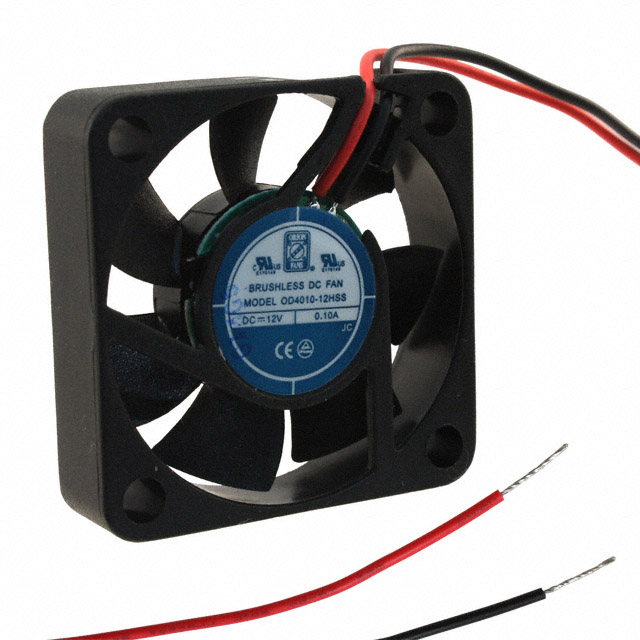

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Sealed Sleeve 9.2 CFM (0.258m³/min) 2 Wire Leads
Specifications
- Mfr
- Orion Fans
- RPM
- 8000 RPM
- Noise
- 33.2dB
- Width
- 10.50mm
- Series
- OD4010
- Weight
- 0.441 lb (200.00 g)
- Air Flow
- 9.2 CFM (0.258m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Packaging
- Box
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sealed Sleeve
- Power (Watts)
Voltage Range10.8 ~ 13.2VDC Approval AgencyCE, cURus, TUV, UR Static Pressure0.200 in H2O (49.8 Pa) Lifetime @ Temp.50000 Hrs @ 40°C Material - BladePolybutylene Terephthalate (PBT) Material - FramePolybutylene Terephthalate (PBT) Size / DimensionSquare - 40mm L x 40mm H Base Product NumberOD4010 Current Rating (Amps)0.070A Operating Temperature14 ~ 158°F (-10 ~ 70°C) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥74.36000 |
| Box | 10 | ¥61.47500 |
| Box | 25 | ¥56.49760 |
| Box | 50 | ¥52.87620 |
| Box | 100 | ¥49.41460 |
| Box | 250 | ¥48.94372 |
