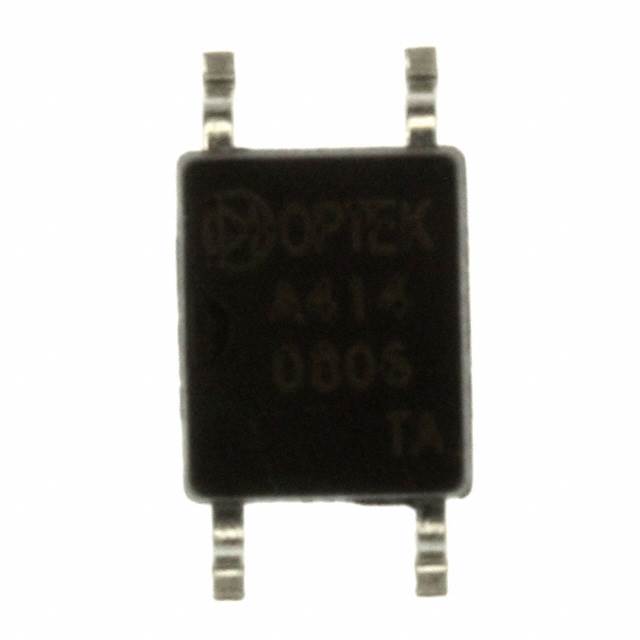

OPIA414BTUA
OPTOISO 3.75KV 1CH TRANS 4-SOP
Manufacturer: TT Electronics/Optek TechnologyIC code: 365-1435-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Specifications
- Series
- -
- Packaging
- Tube
- Input Type
- DC
- Output Type
- Transistor
- Part Status
- Obsolete
- Manufacturer
- TT Electronics/Optek Technology
- Mounting Type
- Surface Mount
- Package / Case
- 4-SMD, Gull Wing
- Number of Channels
- 1
- Voltage - Isolation
- 3750Vrms
- Vce Saturation (Max)
- 200mV
- Operating Temperature
- -30°C ~ 115°C
- Rise / Fall Time (Typ)
- 4µs, 3µs
- Voltage - Output (Max)
- 80V
- Supplier Device Package
- 4-SOP (2.54mm)
- Current - Output / Channel
- 50mA
- Current Transfer Ratio (Max)
- 600% @ 1mA
- Current Transfer Ratio (Min)
- 100% @ 1mA
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Turn On / Turn Off Time (Typ)
- -
- Current - DC Forward (If) (Max)
- 10 mA
