Description

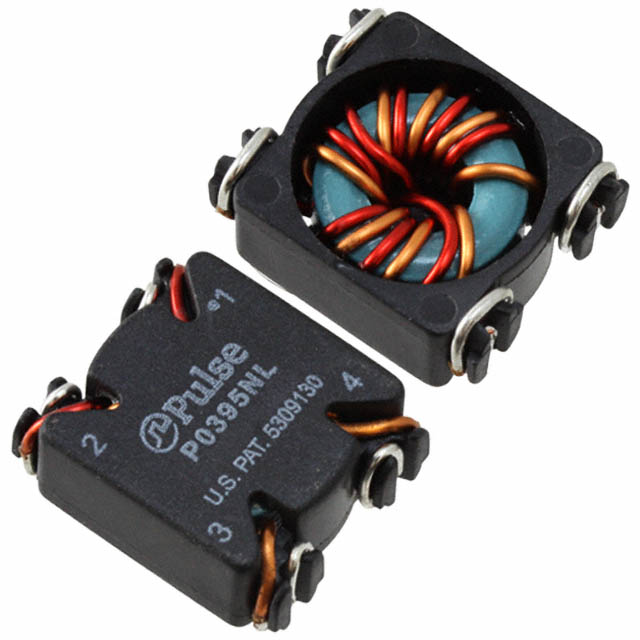

Unshielded 2 Coil Inductor Array 23.7 µH Inductance - Connected in Series 5.9 µH Inductance - Connected in Parallel 10.47mOhm DC Resistance (DCR) - Parallel 8.2 A Nonstandard
Specifications
- Height
- 0.310" (7.87mm)
- Series
- Tomcat
- Ratings
- -
- Packaging
- Tube
- Shielding
- Unshielded
- Tolerance
- ±20%
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.715" L x 0.590" W (18.16mm x 14.99mm)
- Operating Temperature
