Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

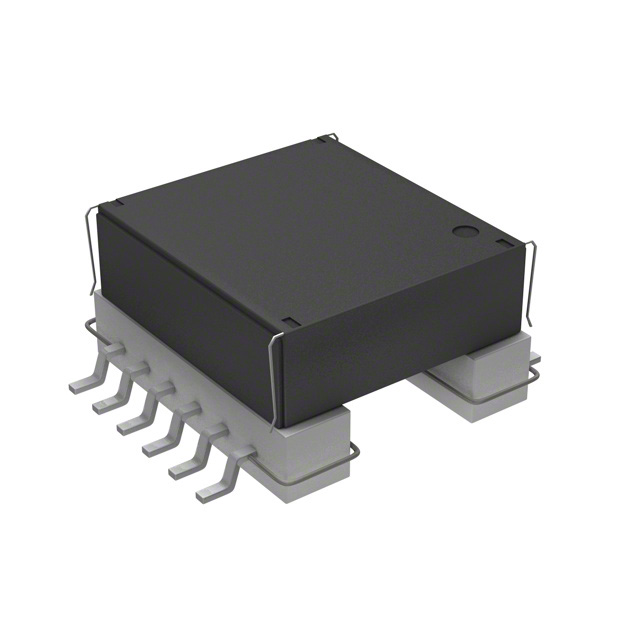

Capacitor Charger For Configurable (For DC/DC) SMPS Transformer 500Vrms Isolation Surface Mount
Specifications
- Type
- Configurable (For DC/DC)
- Series
- PCA15EFD
- Footprint
- 0.713" L x 0.886" W (18.10mm x 22.50mm)
- Frequency
- -
- Packaging
- Tray
- Part Status
- Obsolete
- Applications
- Capacitor Charger
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Intended Chipset
- -
- Size / Dimension
- 0.713" L x 0.630" W (18.10mm x 16.00mm)
- Voltage - Primary
- -
- Voltage - Auxiliary
- -
- Voltage - Isolation
- 500Vrms
- Chipset Manufacturer
- -
- Height - Seated (Max)
- 0.354" (9.00mm)
- Operating Temperature
- -40°C ~ 85°C
- Inductance @ Frequency
