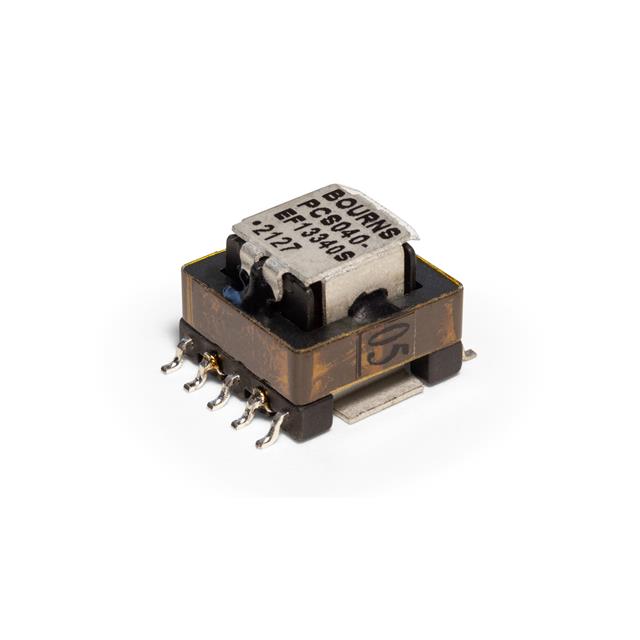

PCS020-EE05980S
CURRENT SENSE TRANSF 20A 980UH
Manufacturer: Bourns Inc.IC code: 118-PCS020-EE05980STR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
20 A 1:70 Current Sense Transformer 1MHz 7mOhm Primary, 4.75Ohm Secondary Max 980 mH Surface Mount
Specifications
- Type
- Invasive
- Series
- PCS
- Weight
- -
- Ratings
- -
- Packaging
- Tape & Reel (TR)
- Inductance
- 980 mH
- Part Status
- Active
- Manufacturer
- Bourns Inc.
- Current Ratio
- 70:1
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- 37.8VµS
- Frequency Range
- 1MHz
- Size / Dimension
- 0.245" L x 0.235" W (6.22mm x 5.97mm)
