Description

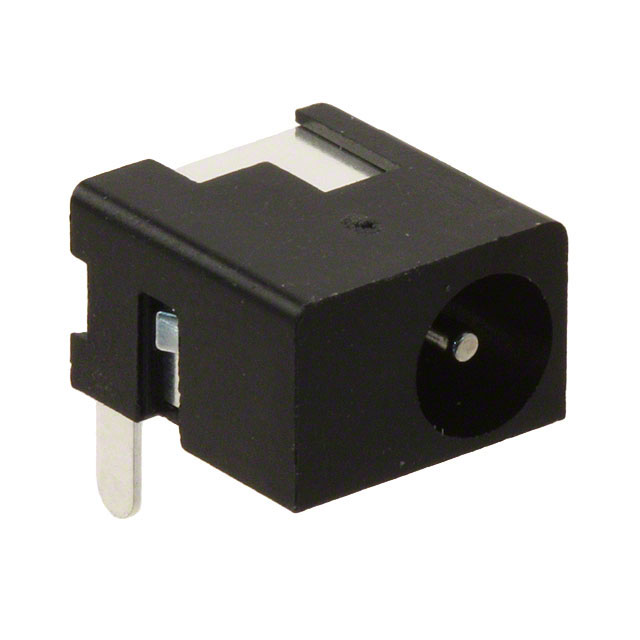

Power Barrel Connector Jack 1.00mm ID (0.039"), 3.40mm OD (0.134") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- -
- Includes
- -
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Obsolete
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.039" (1.00mm ID), 0.165" (4.20mm OD) Contact MaterialBrass, Copper Alloy Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Single Switch, Normally Closed Base Product NumberPJ-014 Mating Length/Depth0.283" (7.20mm) Current Rating (Amps)2.5 A Operating Temperature-25°C ~ 85°C Contact Material - PlatingNickel Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.00mm ID (0.039"), 3.40mm OD (0.134") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥4.96000 |
| Bag | 10 | ¥4.21800 |
| Bag | 25 | ¥3.94960 |
| Bag | 50 | ¥3.76120 |
| Bag | 100 | ¥3.58090 |
| Bag | 250 | ¥3.35628 |
| Bag | 500 | ¥3.19586 |
| Bag | 1,000 | ¥3.04327 |
