Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

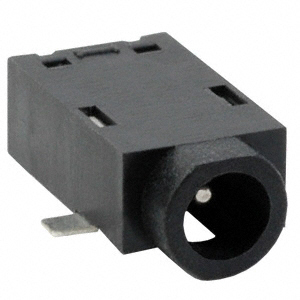

Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Surface Mount, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
Actual Diameter0.026" (0.65mm ID), 0.102" (2.60mm OD) Contact MaterialBrass, Copper Alloy Housing MaterialPolyamide (PA6T), Nylon 6T Internal Switch(s)Does Not Contain Switch Base Product NumberPJ-040 Mating Length/Depth0.303" (7.70mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 2 Contacts Industry Recognized Mating Diameter0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.10000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.89700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥6.46040 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.15120 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.85680 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥5.48996 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥5.22762 |
| Tape & Reel (TR) | 1,000 | ¥4.97796 |
| Tape & Reel (TR) | 2,000 | ¥4.74036 |
| Tape & Reel (TR) | 3,000 | ¥4.60672 |
| Tape & Reel (TR) | 5,000 | ¥4.44370 |
| Tape & Reel (TR) | 7,000 | ¥4.33951 |
| Tape & Reel (TR) | 10,000 | ¥4.23178 |
