Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

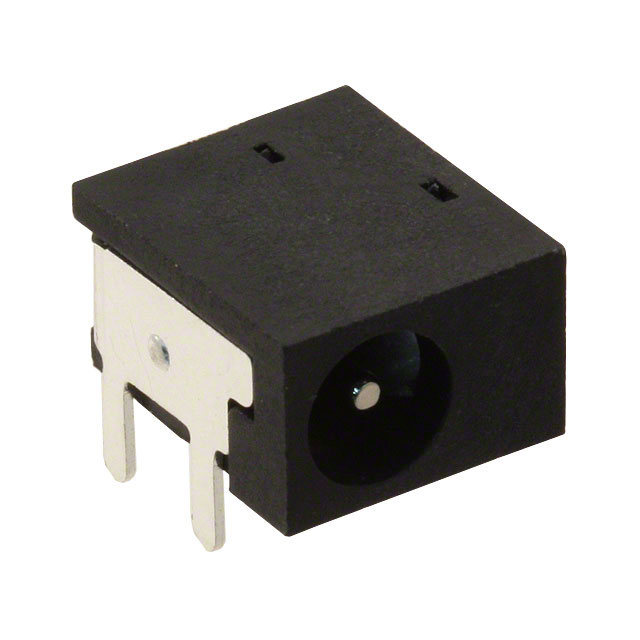

Power Barrel Connector Jack 1.00mm ID (0.039"), 3.40mm OD (0.134") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.039" (1.00mm ID), 0.154" (3.90mm OD) Housing MaterialPolyamide (PA66), Nylon 6/6 Internal Switch(s)Single Switch, Normally Closed Base Product NumberPJ-053 Mating Length/Depth0.244" (6.20mm) Current Rating (Amps)3.5 A Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.00mm ID (0.039"), 3.40mm OD (0.134") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥6.53000 |
| Bag | 10 | ¥5.51600 |
| Bag | 25 | ¥5.17040 |
| Bag | 50 | ¥4.92400 |
| Bag | 216 | ¥4.43940 |
| Bag | 432 | ¥4.22727 |
| Bag | 648 | ¥4.10793 |
| Bag | 1,080 | ¥3.96240 |
| Bag | 2,592 | ¥3.72500 |
