Description

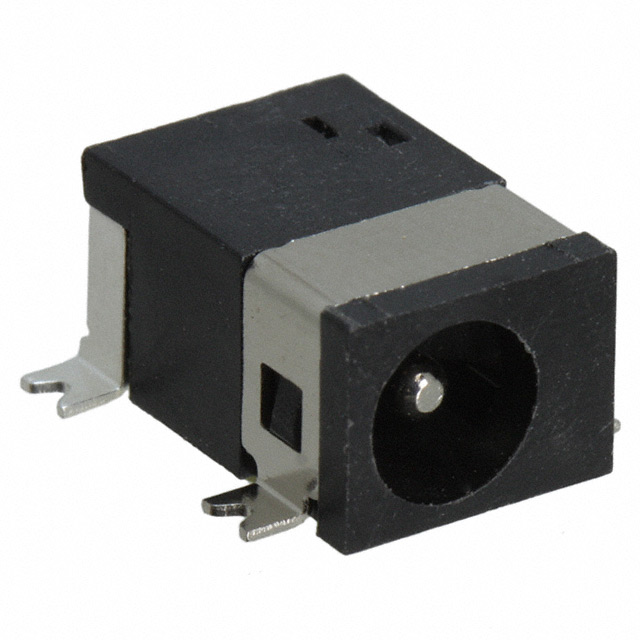

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.40mm OD (0.134") Surface Mount, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
Actual Diameter0.051" (1.30mm ID), 0.146" (3.70mm OD) Contact MaterialBrass, Copper Alloy Housing MaterialPolyamide (PA6T), Nylon 6T Internal Switch(s)Single Switch, Normally Closed Base Product NumberPJ-075 Mating Length/Depth0.252" (6.40mm) Current Rating (Amps)3.5 A Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.30mm ID (0.051"), 3.40mm OD (0.134") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥8.68000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥7.36900 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥6.90720 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥6.57460 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥6.26120 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥5.86840 |
| Tape & Reel (TR) | 950 | ¥5.34059 |
| Tape & Reel (TR) | 1,900 | ¥5.08569 |
| Tape & Reel (TR) | 2,850 | ¥4.94232 |
| Tape & Reel (TR) | 4,750 | ¥4.76745 |
| Tape & Reel (TR) | 6,650 | ¥4.65567 |
| Tape & Reel (TR) | 9,500 | ¥4.54007 |
