Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

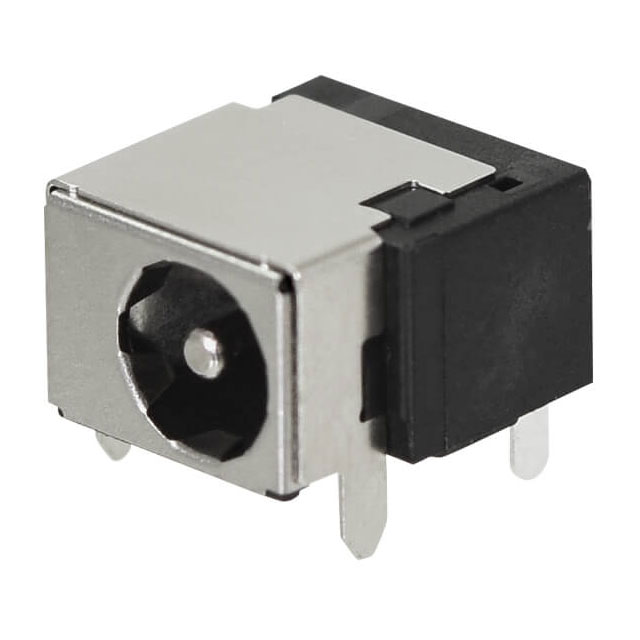

Power Barrel Connector Jack 1.65mm ID (0.065"), 5.50mm OD (0.217") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Shielding
- Shielded
- Body Color
- Silver, Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.065" (1.65mm ID), 0.232" (5.90mm OD) Contact MaterialBrass; Copper Alloy Housing MaterialPolyamide (PA10T), Nylon 10T Internal Switch(s)Single Switch, Normally Closed Base Product NumberPJ-085 Mating Length/Depth0.323" (8.20mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts3 Conductors, 4 Contacts Industry Recognized Mating Diameter1.65mm ID (0.065"), 5.50mm OD (0.217") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥11.99000 |
| Cut Tape (CT) | 10 | ¥10.18000 |
| Cut Tape (CT) | 25 | ¥9.54360 |
| Cut Tape (CT) | 50 | ¥9.08700 |
| Cut Tape (CT) | 100 | ¥8.65290 |
| Cut Tape (CT) | 250 | ¥8.11056 |
| Cut Tape (CT) | 500 | ¥7.72318 |
| Tape & Reel (TR) | 1,000 | ¥7.35442 |
| Tape & Reel (TR) | 2,000 | ¥7.00353 |
| Tape & Reel (TR) | 3,000 | ¥6.80606 |
| Tape & Reel (TR) | 5,000 | ¥6.56533 |
| Tape & Reel (TR) | 7,000 | ¥6.41143 |
| Tape & Reel (TR) | 10,000 | ¥6.25229 |
