Description

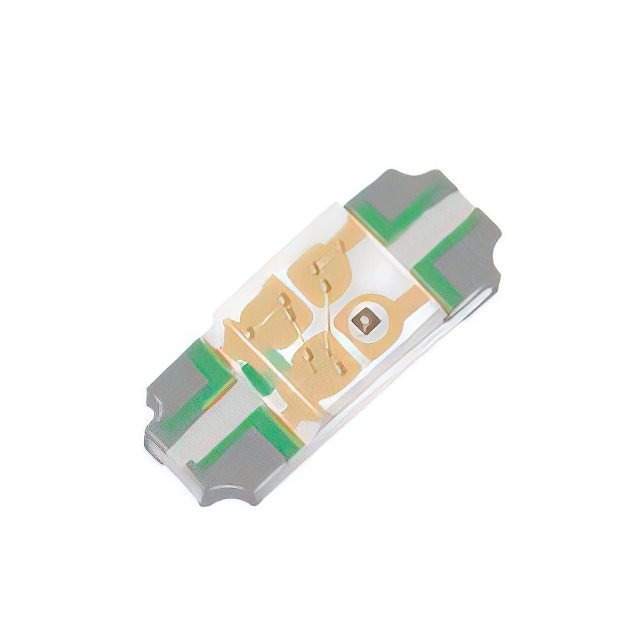

Blue, Red 472nm Blue, 624nm Red LED Indication - Discrete 3.15V Blue, 2.15V Red 4-SMD, No Lead
Specifications
- Mfr
- Quelighting Corp
- Color
- Blue, Red
- Series
- -
- Features
- -
- Lens Size
- 1.40mm x 1.25mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- -
- Lens Style
- Square with Flat Top
- Part Status
- Active
- Height (Max)
- 1.20mm
- Configuration
- Independent
- Mounting Type
- Surface Mount, Bottom Entry
- Viewing Angle
- 120°
Current - Test20mA Blue, 20mA Red Package / Case4-SMD, No Lead Size / Dimension3.20mm L x 1.25mm W Wavelength - Peak470nm Blue, 632nm Red Millicandela Rating130mcd Blue, 120mcd Red Wavelength - Dominant472nm Blue, 624nm Red Supplier Device Package4-SMD Voltage - Forward (Vf) (Typ)3.15V Blue, 2.15V Red Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.73000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥1.86900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.32150 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.07278 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥0.99041 |
| Tape & Reel (TR) | 3,000 | ¥0.88434 |
| Tape & Reel (TR) | 6,000 | ¥0.83014 |
| Tape & Reel (TR) | 9,000 | ¥0.80233 |
| Tape & Reel (TR) | 15,000 | ¥0.77088 |
| Tape & Reel (TR) | 21,000 | ¥0.75218 |
| Tape & Reel (TR) | 30,000 | ¥0.73393 |
| Tape & Reel (TR) | 75,000 | ¥0.69362 |
