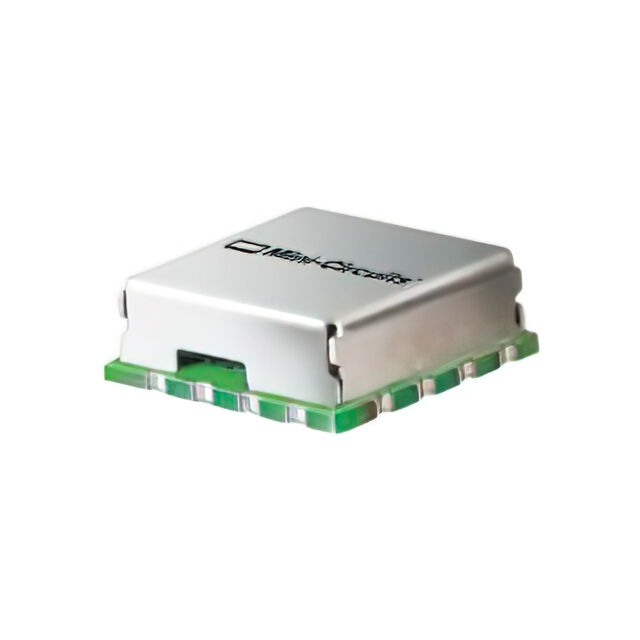

RDP-6500+
DPLXR, 3500-4400/4400-6500 MHZ
Manufacturer: Mini-CircuitsIC code: 3157-RDP-6500+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 0Hz ~ 100MHz / 1.4GHz ~ 6.5GHz 16-SMD, No Lead
Specifications
- Type
- Diplexer
- Grade
- -
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 16-SMD, No Lead
- Frequency Bands (Low / High)
- 0Hz ~ 100MHz / 1.4GHz ~ 6.5GHz
- Return Loss (Low Band / High Band)
- 14.0dB / 10.0dB
- Low Band Attenuation (min / max dB)
- -
