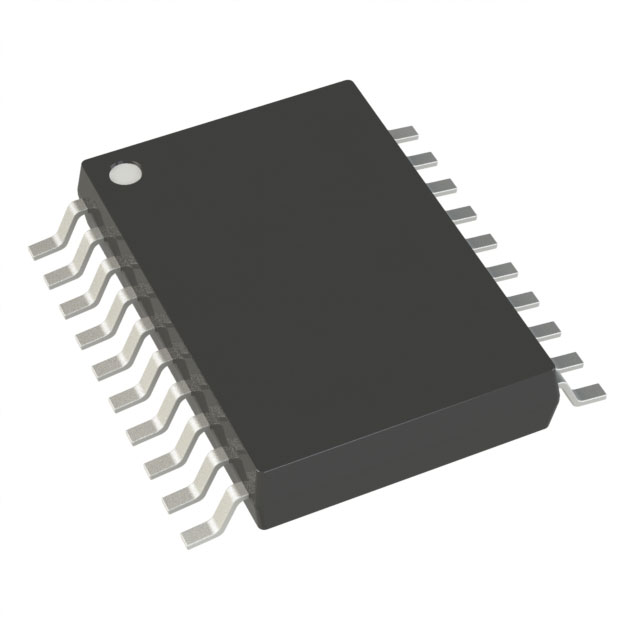

S9S12GN16F1CTJ
S9S12GN16F1CTJ - 16-bit MCU, 16K
Manufacturer: Analog Devices Inc.IC code: 2156-S9S12GN16F1CTJ-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
12V1 HCS12 Microcontroller IC 16-Bit 25MHz 16KB (16K x 8) FLASH 20-TSSOP
Specifications
- Mfr
- Analog Devices Inc.
- Speed
- 25MHz
- Series
- HCS12
- RAM Size
- 1K x 8
- Core Size
- 16-Bit
- Packaging
- Bulk
- EEPROM Size
- 512 x 8
- Part Status
- Active
- Peripherals
- LVD, POR, PWM, WDT
- Connectivity
- IrDA, LINbus, SCI, SPI
- Mounting Type
- Surface Mount
- Number of I/O
- 14
- Core Processor
- 12V1
- Package / Case
- 20-TSSOP (0.173", 4.40mm Width)
- Data Converters
- A/D 8x10b
- Oscillator Type
- Internal
- Program Memory Size
- 16KB (16K x 8)
- Program Memory Type
- FLASH
