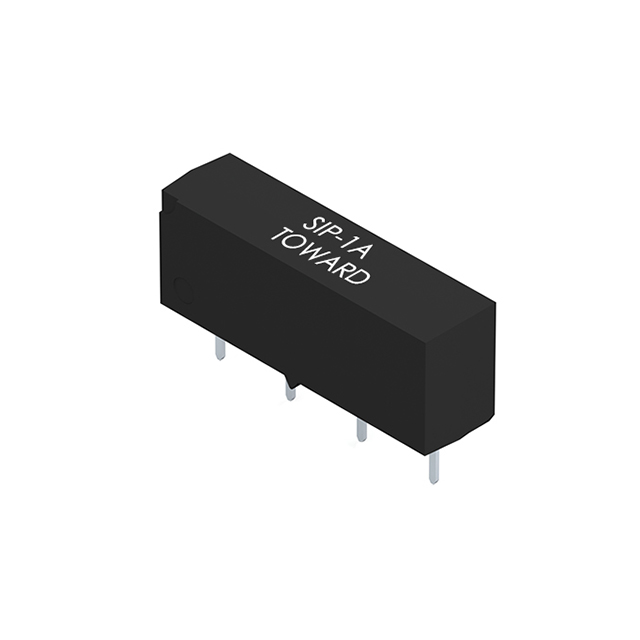

SIP-1A05
200V/1A REED RELAY, 1 FORM A, 5V
Manufacturer: Toward Technologies, Inc.IC code: 3008-SIP-1A05-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Reed Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Specifications
- Series
- SIP
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tube
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 10 mA
- Coil Voltage
- 5VDC
- Contact Form
- SPST-NO (1 Form A)
- Manufacturer
- Toward Technologies, Inc.
- Operate Time
- 1 ms
- Release Time
- 0.5 ms
- Mounting Type
- Through Hole
- Coil Resistance
- 500 Ohms
- Contact Material
- -
- Switching Voltage
- 100VAC, 100VDC - Max
- Termination Style
- PC Pin
- Must Operate Voltage
- 3.75 VDC
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Tube | 1 | ¥11.50000 |
| Tube | 10 | ¥10.25100 |
| Tube | 25 | ¥9.79320 |
| Tube | 50 | ¥9.45700 |
| Tube | 100 | ¥9.13450 |
| Tube | 250 | ¥8.72284 |
| Tube | 500 | ¥8.42382 |
| Tube | 1,000 | ¥8.13489 |
| Tube | 5,000 | ¥7.50077 |
