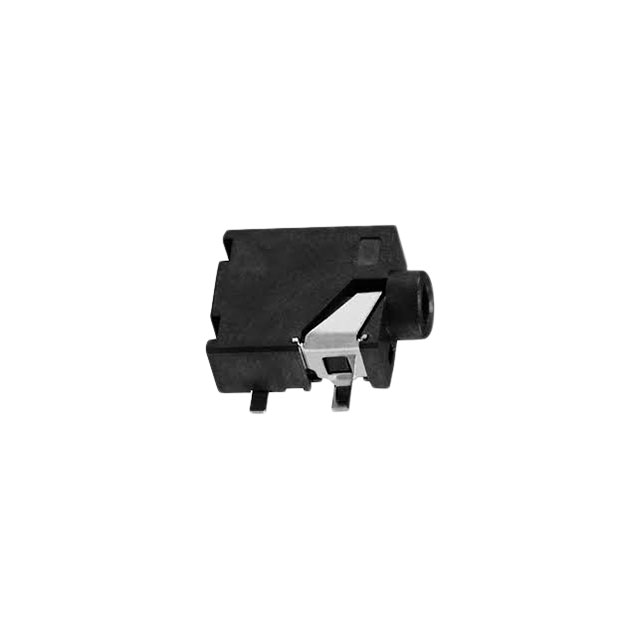

STX-2550-3NTR
STEREO JACK 2.5MM, SMT NON-THREA
Manufacturer: Kycon, Inc.IC code: 2092-STX-2550-3NTR-ND - Tape & Reel (TR) || 2092-STX-2550-3NTRCT-ND - Cut Tape (CT) || 2092-STX-2550-3NTRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-2550
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.102" (2.60mm) Contact MaterialCopper Alloy Housing MaterialLiquid Crystal Polymer (LCP) Internal Switch(s)Does Not Contain Switch Operating Temperature-25°C ~ 85°C Contact Material - PlatingGold Number of Positions/Contacts3 Conductors, 3 Contacts Industry Recognized Mating Diameter2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥9.76000 |
| Tape & Reel (TR) | 1,000 | ¥5.97780 |
