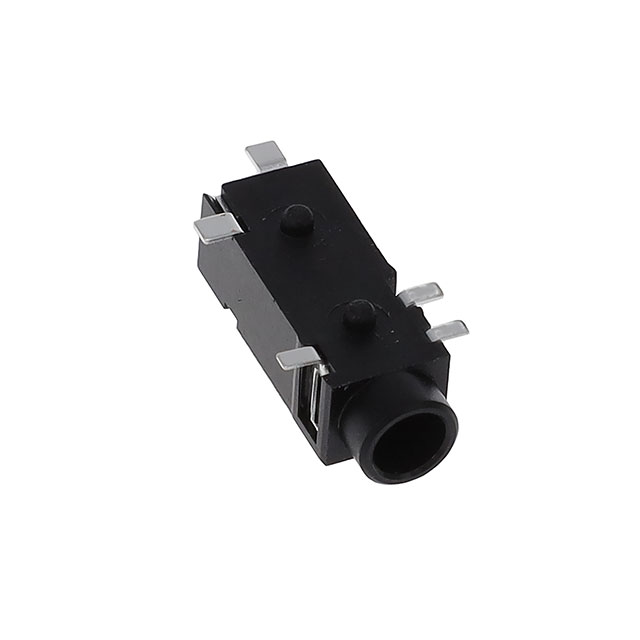

STX-3500-5NTR
CONN JACK STEREO 3.5MM SMD R/A
Manufacturer: Kycon, Inc.IC code: 2092-STX-3500-5NTR-ND - Tape & Reel (TR) || 2092-STX-3500-5NCT-ND - Cut Tape (CT) || 2092-STX-3500-5NDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3500
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Housing MaterialThermoplastic Internal Switch(s)Two Switches Current Rating (Amps)300 mA Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Number of Positions/Contacts3 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥12.65000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.74300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥10.06640 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥9.58320 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥9.12590 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥8.55380 |
| Tape & Reel (TR) | 750 | ¥7.91571 |
| Tape & Reel (TR) | 1,500 | ¥7.53793 |
| Tape & Reel (TR) | 2,250 | ¥7.32541 |
| Tape & Reel (TR) | 3,750 | ¥7.06628 |
| Tape & Reel (TR) | 5,250 | ¥6.90062 |
| Tape & Reel (TR) | 7,500 | ¥6.72929 |
