STX-35331-4N-TR

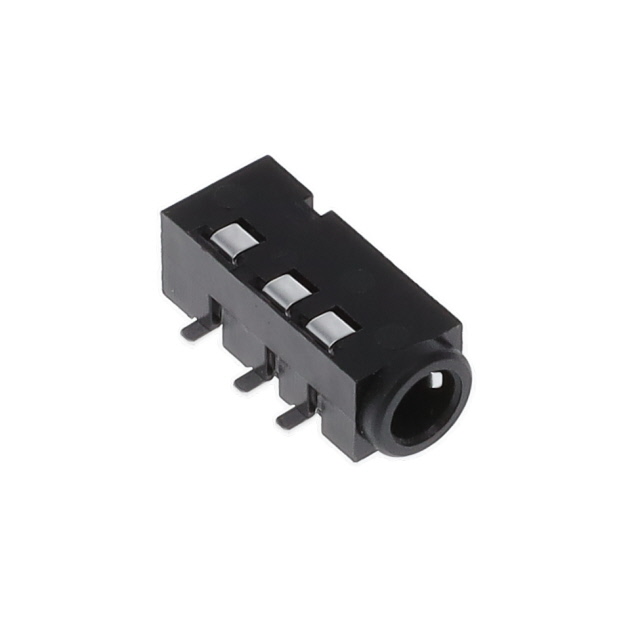

CONN JACK STEREO 3.5MM SMD R/A
Manufacturer: Kycon, Inc.IC code: 2092-STX-35331-4N-TR-ND - Tape & Reel (TR) || 2092-STX-35331-4N-CT-ND - Cut Tape (CT) Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-35331
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Obsolete
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Housing MaterialThermoplastic Internal Switch(s)Does Not Contain Switch Current Rating (Amps)300 mA Operating Temperature-25°C ~ 70°C Contact Material - PlatingSilver Number of Positions/Contacts4 Conductors, 4 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) | 1 | ¥13.23000 |
| Cut Tape (CT) | 10 | ¥11.23100 |
| Cut Tape (CT) | 25 | ¥10.52280 |
| Cut Tape (CT) | 50 | ¥10.02000 |
| Cut Tape (CT) | 100 | ¥9.54110 |
| Cut Tape (CT) | 250 | ¥8.94348 |
| Tape & Reel (TR) | 2,000 | ¥6.72905 |
