STX-3542-5N-G-TR

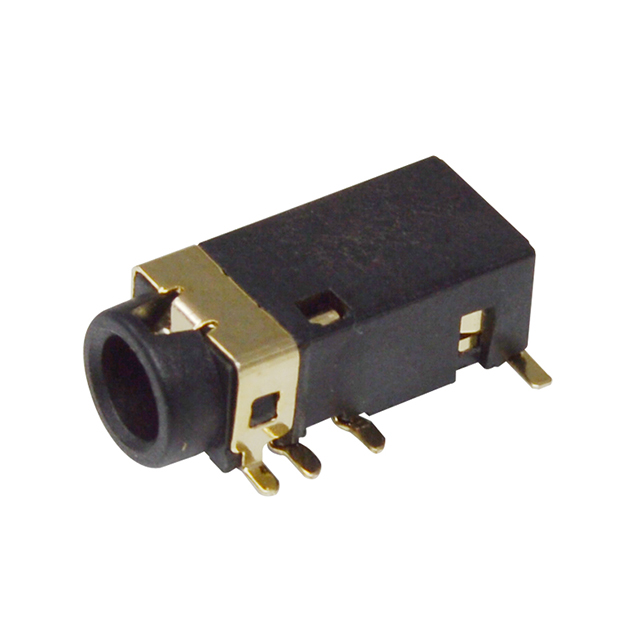

CONN JACK STEREO 5COND SMD
Manufacturer: Kycon, Inc.IC code: STX-3542-5N-G-TR-ND - Tape & Reel (TR) || STX-3542-5N-G-CT-ND - Cut Tape (CT) || STX-3542-5N-G-DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack 5 Conductor (TRRRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3542
- Features
- -
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- 5 Conductor (TRRRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialPhosphor Bronze Housing MaterialThermoplastic Internal Switch(s)Does Not Contain Switch Operating Temperature-25°C ~ 70°C Contact Material - PlatingGold Number of Positions/Contacts5 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥14.14000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥12.02500 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥11.26720 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥10.72940 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥10.21670 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥9.57632 |
| Tape & Reel (TR) | 800 | ¥8.82170 |
| Tape & Reel (TR) | 1,600 | ¥8.40076 |
| Tape & Reel (TR) | 2,400 | ¥8.16393 |
| Tape & Reel (TR) | 4,000 | ¥7.87512 |
| Tape & Reel (TR) | 5,600 | ¥7.69054 |
| Tape & Reel (TR) | 8,000 | ¥7.49962 |
