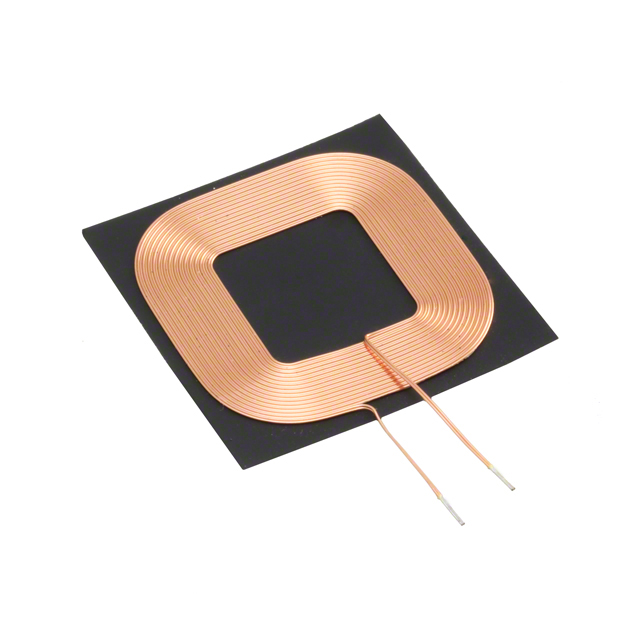

SWC4242KB120-100
RX 1 COIL 1 LAYER 12.5UH
Manufacturer: Laird-Signal Integrity ProductsIC code: 240-2786-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1 Coil, 1 Layer 12.5µH Wireless Charging Coil Receiver 240mOhm Max
Specifications
- Type
- 1 Coil, 1 Layer
- Series
- SWC
- Function
- Receiver
- Q @ Freq
- 20 @ 100kHz
- Packaging
- Box
- Tolerance
- ±10%
- Inductance
- 12.5µH
- Part Status
- Active
- Manufacturer
- Laird-Signal Integrity Products
- Size / Dimension
- 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm)
- DC Resistance (DCR)
- 240mOhm Max
- Current Rating (Amps)
- -
- Operating Temperature
- -40°C ~ 85°C
- Frequency - Self Resonant
- -
- Current - Saturation (Isat)
- -
