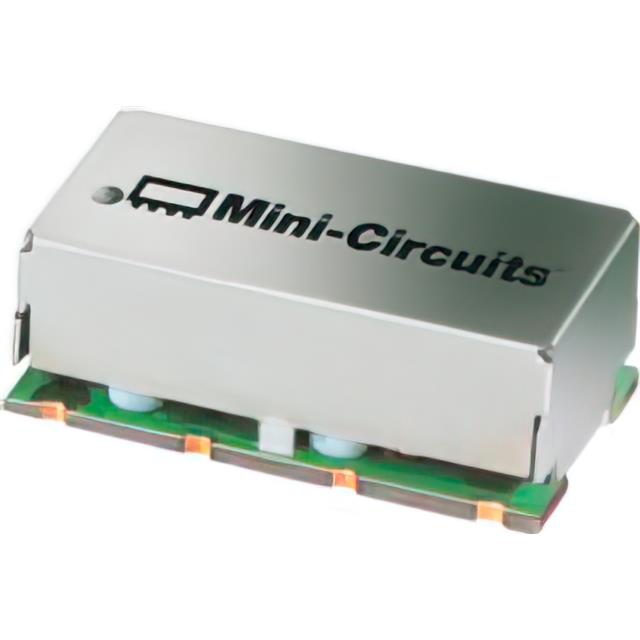

SXBP-100+
RF FILTER BAND PASS 100MHZ 8SMD
Manufacturer: Mini-CircuitsIC code: 3157-SXBP-100+TR-ND - Tape & Reel (TR) || 3157-SXBP-100+CT-ND - Cut Tape (CT) || 3157-SXBP-100+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
100MHz Center Frequency Band Pass RF Filter (Radio Frequency) 30MHz Bandwidth 3dB 8-SMD, No Lead
Specifications
- Ripple
- -
- Series
- SXBP
- Bandwidth
- 30MHz
- Frequency
- 100MHz Center
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.270" (6.86mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 3dB
- Package / Case
- 8-SMD, No Lead
- Size / Dimension
