SYBP-2250+

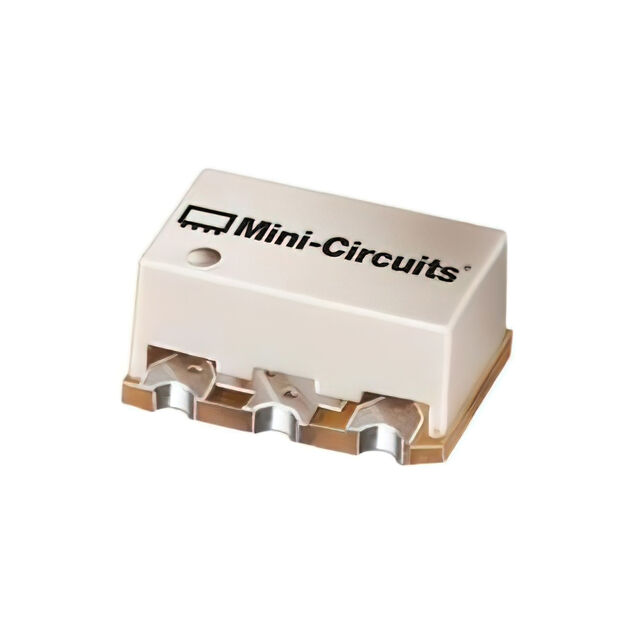

LUMPED LC BPF, 1880 - 2620 MHZ
Manufacturer: Mini-CircuitsIC code: 3157-SYBP-2250+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2.25GHz Center Frequency Band Pass RF Filter (Radio Frequency) 740MHz Bandwidth 3dB 6-SMD, No Lead
Specifications
- Ripple
- -
- Series
- -
- Bandwidth
- 740MHz
- Frequency
- 2.25GHz Center
- Packaging
- Tape & Reel (TR)
- Filter Type
- Band Pass
- Part Status
- Active
- Height (Max)
- 0.150" (3.81mm)
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Insertion Loss
- 3dB
- Package / Case
- 6-SMD, No Lead
- Size / Dimension
- 0.310" L x 0.250" W (7.87mm x 6.35mm)
