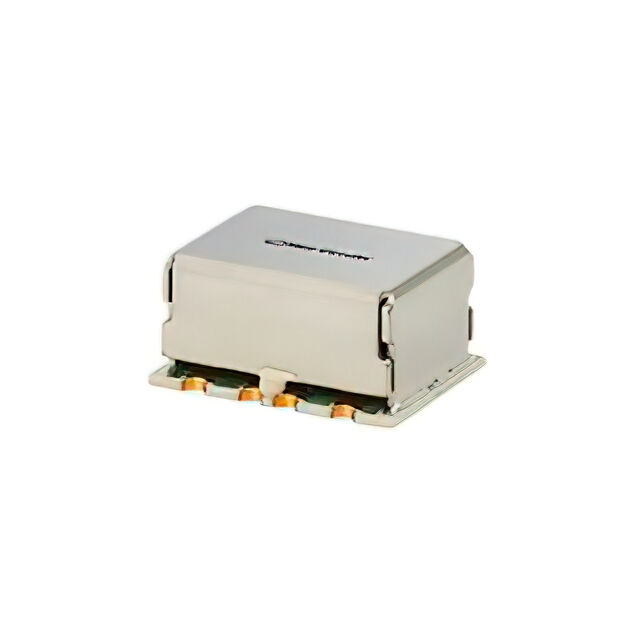

SYDC-30-12HP+
BI-DIR CPLR, 20 - 100 MHZ
Manufacturer: Mini-CircuitsIC code: 3157-SYDC-30-12HP+TR-ND - Tape & Reel (TR) || 3157-SYDC-30-12HP+CT-ND - Cut Tape (CT) || 3157-SYDC-30-12HP+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Directional Coupler Military 20MHz ~ 100MHz 29 ± 1dB 55W 8-SMD, No Lead
Specifications
- Series
- -
- Frequency
- 20MHz ~ 100MHz
- Isolation
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Power - Max
- 55W
- Return Loss
- 36dB
- Applications
- Military
- Coupler Type
- Dual Band, Dual Path
- Manufacturer
- Mini-Circuits
- Insertion Loss
- 0.08dB
- Package / Case
- 8-SMD, No Lead
- Coupling Factor
- 29 ± 1dB
