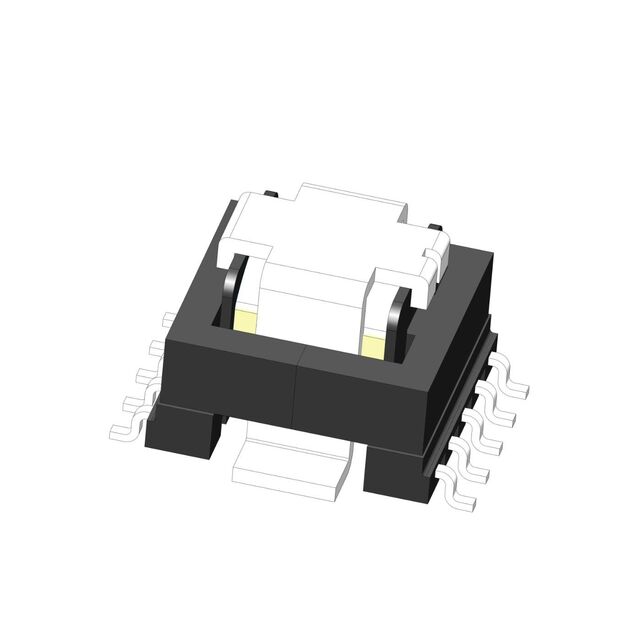

T10135C-500HF
1:500 RATIO 155MH 50AMP 0.28M
Manufacturer: ITG Electronics, Inc.IC code: 3013-T10135C-500HF-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
50 A 1:500 Current Sense Transformer 0.28mOhm Primary, 66Ohm Secondary Max 155 mH Surface Mount
Specifications
- Type
- Invasive
- Series
- T10135
- Weight
- -
- Ratings
- -
- Packaging
- Bulk
- Inductance
- 155 mH
- Part Status
- Active
- Manufacturer
- ITG Electronics, Inc.
- Current Ratio
- 500:1
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Frequency Range
- -
- Size / Dimension
- -
- Termination Style
- Gull Wing
- DC Resistance (DCR)
- 0.28mOhm Primary, 66Ohm Secondary Max
- Current Rating (Amps)
- 50 A
- Height - Seated (Max)
- 0.433" (11.00mm)
- Turns Ratio - Primary:Secondary
- 1:500
