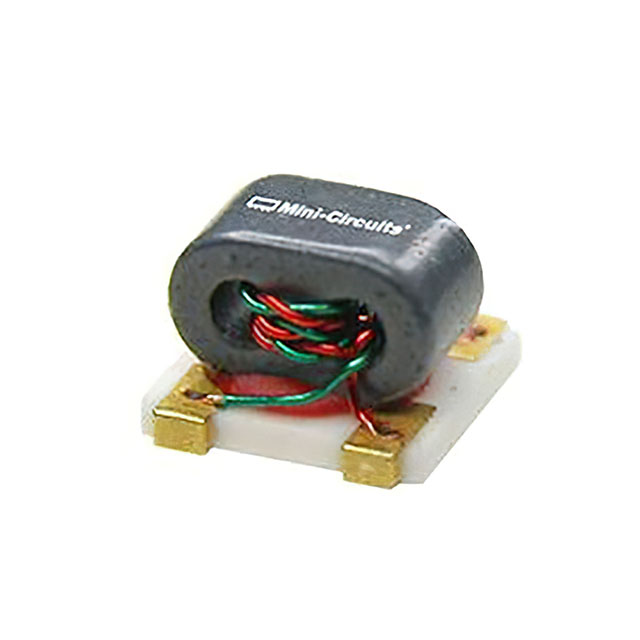

TC9-1G2+
1:9 CORE & WIRE TRANSFORMER, 2 -
Manufacturer: Mini-CircuitsIC code: 3157-TC9-1G2+TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 2MHz ~ 200MHz 1:9 6-SMD (5 Leads), Flat Lead
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Package / Case
- 6-SMD (5 Leads), Flat Lead
- Frequency Range
- 2MHz ~ 200MHz
- Phase Difference
- 1°
- Return Loss (Min)
- 6.08dB
- Insertion Loss (Max)
- 3dB
- Impedance - Unbalanced/Balanced
- 1:9
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Tape & Reel (TR) | 2,000 | ¥16.17208 |
