Description

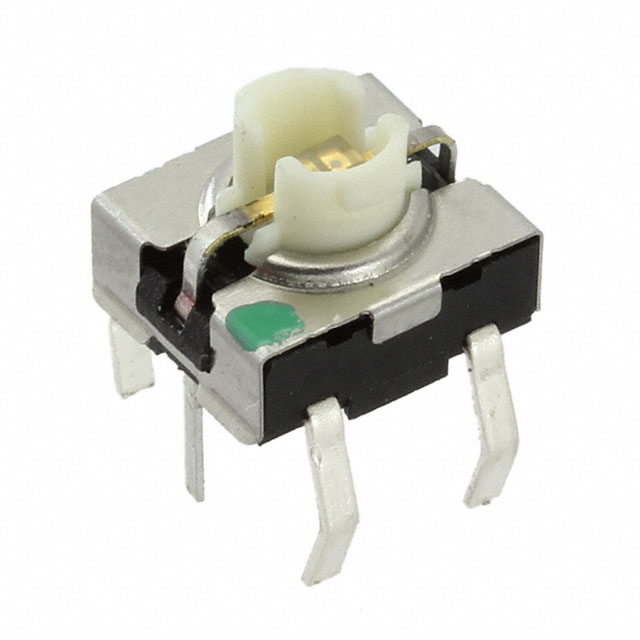

Tactile Switch SPST-NO Top Actuated Through Hole
Specifications
- Mfr
- E-Switch
- Series
- TL6215
- Circuit
- SPST-NO
- Outline
- 7.70mm x 6.37mm
- Features
- -
- Packaging
- Tray
- Part Status
- Active
- Illumination
- Illuminated
- Actuator Type
- Plunger for Cap
- Mounting Type
- Through Hole
- Switch Travel
- 0.45mm
- Mechanical Life
- 500,000 Cycles
- Operating Force
- 200gf
Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberTL6215 Actuator OrientationTop Actuated Operating Temperature-20°C ~ 70°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, ColorLED, Green Actuator Length, Right Angle- Illumination Voltage (Nominal)2.1 VDC Actuator Height off PCB, Vertical5.35mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥33.16000 |
| Tray | 10 | ¥27.76200 |
| Tray | 60 | ¥23.91267 |
| Tray | 120 | ¥22.59017 |
| Tray | 300 | ¥21.00880 |
| Tray | 540 | ¥20.09869 |
| Tray | 1,020 | ¥19.20551 |
| Tray | 2,520 | ¥18.09349 |
