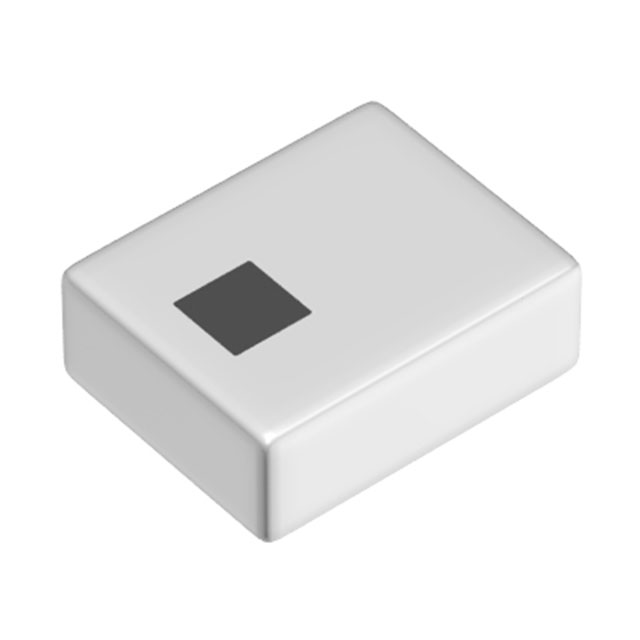

TPX255850MT-7025A1
MULTILAYER TRIPLEXER FOR 1447 -
Manufacturer: TDK CorporationIC code: 445-181642-2-ND - Tape & Reel (TR) || 445-181642-1-ND - Cut Tape (CT) || 445-181642-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Triplexer 1.447GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz 1008 (2520 Metric), 9 PC Pad
Specifications
- Type
- Triplexer
- Series
- TPX
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Last Time Buy
- Manufacturer
- TDK Corporation
- Mounting Type
- Surface Mount
- Package / Case
- 1008 (2520 Metric), 9 PC Pad
- Frequency Bands (Low / High)
- 1.447GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz
- Return Loss (Low Band / High Band)
- 10.03dB / 8.01dB
- Low Band Attenuation (min / max dB)
- 30.00dB / 33.60dB
- High Band Attenuation (min / max dB)
- 20.00dB / 23.80dB
