Description

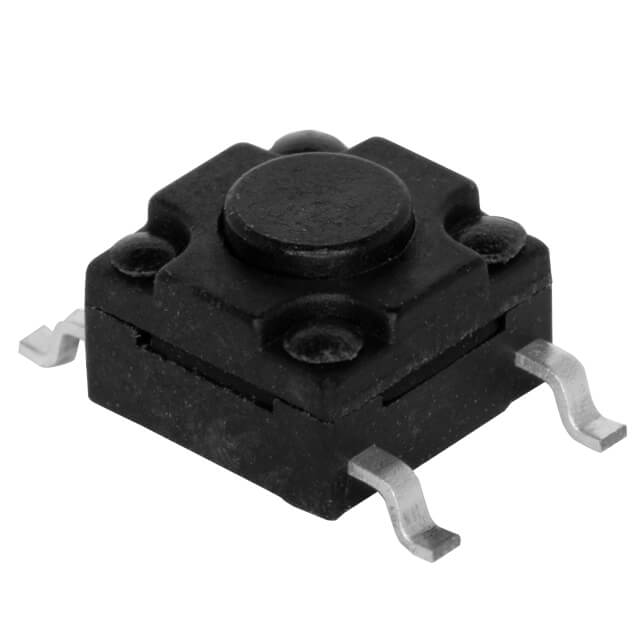

Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- Same Sky (Formerly CUI Devices)
- Series
- TS08
- Circuit
- SPST-NO
- Outline
- 6.10mm x 6.10mm
- Features
- -
- Packaging
- Bag
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.25mm
- Mechanical Life
- 80,000 Cycles
- Operating Force
- 160gf
Actuator MaterialPolyamide (PA6T), Nylon 6T Termination StyleGull Wing Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberTS08-66 Actuator OrientationTop Actuated Operating Temperature-30°C ~ 80°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥2.48000 |
| Bag | 10 | ¥2.13400 |
| Bag | 25 | ¥1.99800 |
| Bag | 100 | ¥1.78960 |
| Bag | 250 | ¥1.65896 |
| Bag | 500 | ¥1.56550 |
| Bag | 1,000 | ¥1.47801 |
| Bag | 3,000 | ¥1.35314 |
| Bag | 5,000 | ¥1.30120 |
