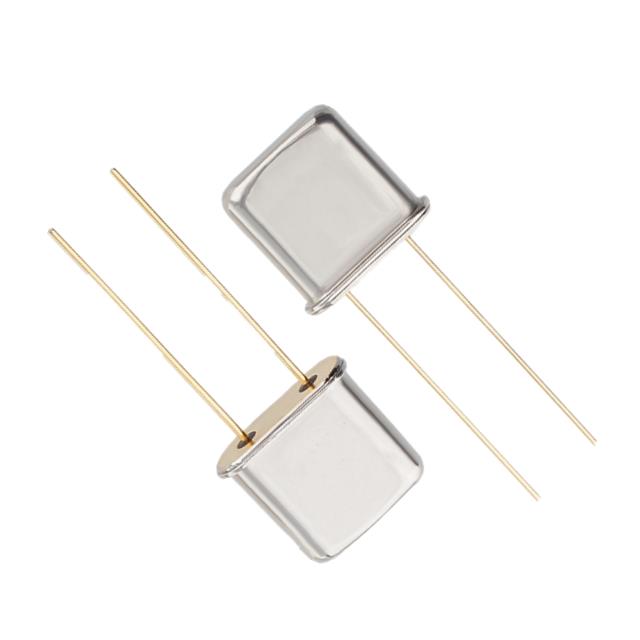

XG21M25000L114
CRYSTAL 21.25MHZ 5ppm 14PF UM-1
Manufacturer: NextGen ComponentsIC code: 3372-XG21M25000L114-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
21.25 MHz ±5ppm Crystal 14pF 30 Ohms UM-1
Specifications
- Mfr
- NextGen Components
- Type
- MHz Crystal
- Series
- XG
- Frequency
- 21.25 MHz
- Packaging
- Bulk
- Part Status
- Active
- Mounting Type
- Through Hole
- Operating Mode
- Fundamental
- Package / Case
- UM-1
- Load Capacitance
- 14pF
- Size / Dimension
- 0.311" L x 0.126" W (7.90mm x 3.20mm)
- Frequency Stability
- ±10ppm
- Frequency Tolerance
- ±5ppm
- Height - Seated (Max)
- 0.319" (8.10mm)
- Operating Temperature
- -10°C ~ 60°C
- ESR (Equivalent Series Resistance)
- 30 Ohms
