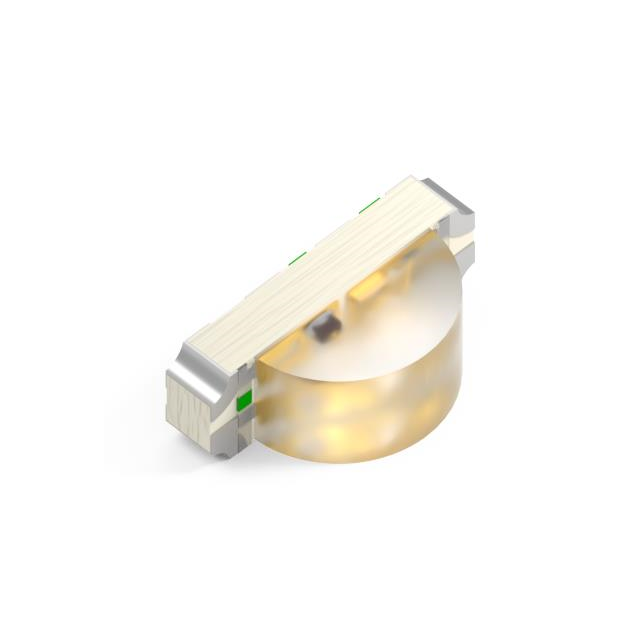

XZMDKMYKX56W-HTA
LED RED/YLW CLR CHIP SMD R/A
Manufacturer: SunLEDIC code: 1497-XZMDKMYKX56W-HTATR-ND - Tape & Reel (TR) || 1497-XZMDKMYKX56W-HTACT-ND - Cut Tape (CT) || 1497-XZMDKMYKX56W-HTADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Red, Yellow 630nm Red, 590nm Yellow LED Indication - Discrete 1.95V Red, 2V Yellow 4-SMD, No Lead
Specifications
- Mfr
- SunLED
- Color
- Red, Yellow
- Series
- High Temperature
- Features
- -
- Lens Size
- 2.00mm x 1.00mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Rectangle with Domed Top
- Part Status
- Active
- Height (Max)
- 1.20mm
- Configuration
- Independent
- Mounting Type
- Surface Mount, Right Angle
- Viewing Angle
Current - Test20mA Red, 20mA Yellow Package / Case4-SMD, No Lead Size / Dimension3.00mm L x 1.50mm W Wavelength - Peak645nm Red, 590nm Yellow Base Product NumberXZMDKMYKX56 Millicandela Rating227.5mcd Red, 260mcd Yellow Wavelength - Dominant630nm Red, 590nm Yellow Supplier Device PackageChip LED Voltage - Forward (Vf) (Typ)1.95V Red, 2V Yellow Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥5.29000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.63900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.63650 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.18692 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.03913 |
| Tape & Reel (TR) | 2,000 | ¥1.91360 |
| Tape & Reel (TR) | 4,000 | ¥1.80704 |
| Tape & Reel (TR) | 6,000 | ¥1.75237 |
| Tape & Reel (TR) | 10,000 | ¥1.69065 |
| Tape & Reel (TR) | 14,000 | ¥1.65393 |
| Tape & Reel (TR) | 20,000 | ¥1.61813 |
| Tape & Reel (TR) | 50,000 | ¥1.53911 |
