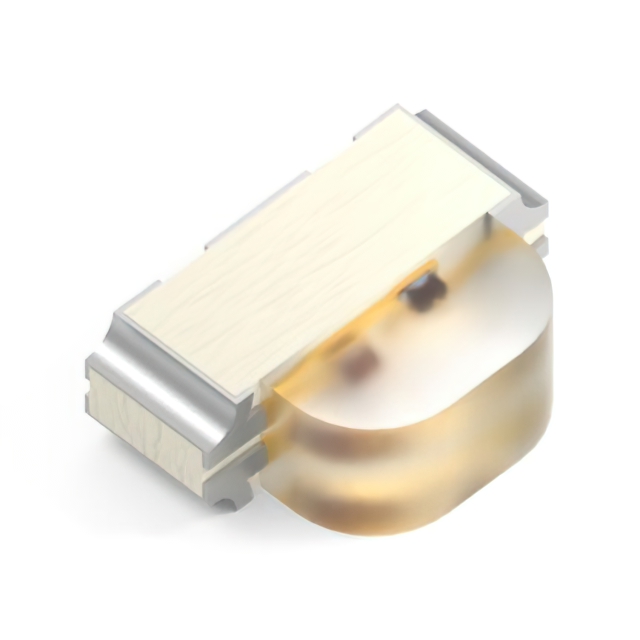

XZUYMG56W
LED GRN/YLW CLEAR 4SMD R/A
Manufacturer: SunLEDIC code: 1497-XZUYMG56WTR-ND - Tape & Reel (TR) || 1497-XZUYMG56WCT-ND - Cut Tape (CT) || 1497-XZUYMG56WDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 3-SMD, No Lead
Specifications
- Mfr
- SunLED
- Color
- Green, Yellow
- Series
- -
- Features
- -
- Lens Size
- 2.00mm x 1.00mm
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Lens Color
- Colorless
- Lens Style
- Rectangle with Domed Top
- Part Status
- Active
- Height (Max)
- 1.00mm
- Configuration
- Common Anode
- Mounting Type
- Surface Mount, Right Angle
- Viewing Angle
- 140°
Current - Test20mA Green, 20mA Yellow Package / Case3-SMD, No Lead Size / Dimension3.00mm L x 2.00mm W Wavelength - Peak565nm Green, 590nm Yellow Base Product NumberXZUYMG56 Millicandela Rating14mcd Green, 7mcd Yellow Wavelength - Dominant568nm Green, 588nm Yellow Supplier Device Package4-SMD Voltage - Forward (Vf) (Typ)2.2V Green, 2.1V Yellow Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tape & Reel (TR) | 2,000 | ¥1.39974 |
| Tape & Reel (TR) | 4,000 | ¥1.31644 |
| Tape & Reel (TR) | 6,000 | ¥1.27370 |
| Tape & Reel (TR) | 10,000 | ¥1.22540 |
| Tape & Reel (TR) | 14,000 | ¥1.19666 |
| Tape & Reel (TR) | 20,000 | ¥1.16863 |
| Tape & Reel (TR) | 50,000 | ¥1.10674 |
| Cut Tape (CT) | 1 | ¥3.97000 |
| Cut Tape (CT) | 10 | ¥2.73700 |
| Cut Tape (CT) | 100 | ¥1.96330 |
| Cut Tape (CT) | 500 | ¥1.61314 |
| Cut Tape (CT) | 1,000 | ¥1.49778 |
| Digi-Reel® | 1 | ¥5.04000 |
| Digi-Reel® | 10 | ¥2.95200 |
| Digi-Reel® | 100 | ¥1.91280 |
