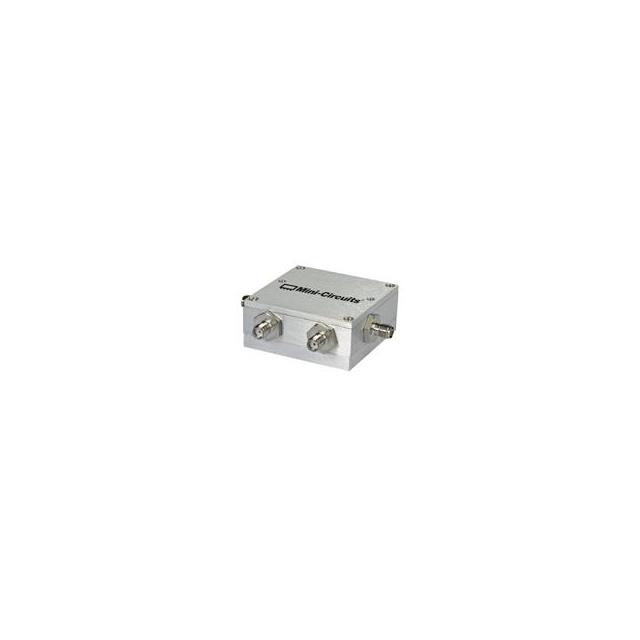

ZABDC20-322H-S+
20.5 DB BI-DC, 1700 - 3200 MHZ
Manufacturer: Mini-CircuitsIC code: 3157-ZABDC20-322H-S+-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Directional Coupler DCS, PCS, UMTS 1.7GHz ~ 3.2GHz 20 ± 1dB, 20.5 ± 1dB 50W Module, SMA Connectors
Specifications
- Series
- -
- Frequency
- 1.7GHz ~ 3.2GHz
- Isolation
- -
- Packaging
- Tray
- Part Status
- Active
- Power - Max
- 50W
- Return Loss
- -
- Applications
- DCS, PCS, UMTS
- Coupler Type
- Standard
- Manufacturer
- Mini-Circuits
- Insertion Loss
- -
- Package / Case
- Module, SMA Connectors
- Coupling Factor
- 20 ± 1dB, 20.5 ± 1dB
