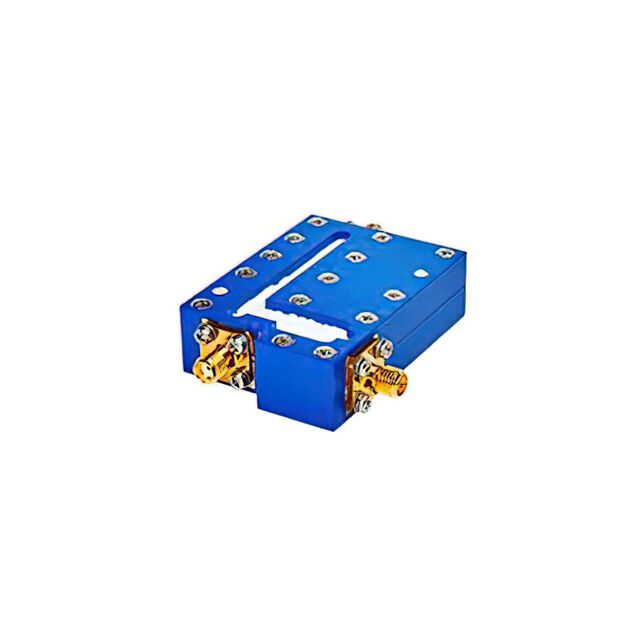

ZDSS-2R5G5G-S+
DIPLEXER, DC-2500/5100-7500 MHZ
Manufacturer: Mini-CircuitsIC code: 3157-ZDSS-2R5G5G-S+-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 0Hz ~ 2.5GHz / 5.1GHz ~ 7.5GHz Module, SMA Connectors
Specifications
- Type
- Diplexer
- Grade
- -
- Series
- -
- Packaging
- Bag
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Chassis Mount
- Qualification
- -
- Package / Case
- Module, SMA Connectors
- Frequency Bands (Low / High)
- 0Hz ~ 2.5GHz / 5.1GHz ~ 7.5GHz
- Return Loss (Low Band / High Band)
- 14.0dB / 14.0dB
- Low Band Attenuation (min / max dB)
- -
